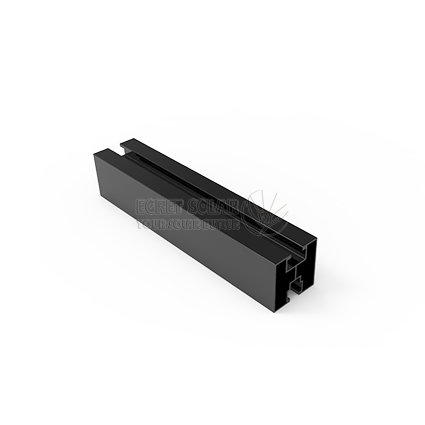

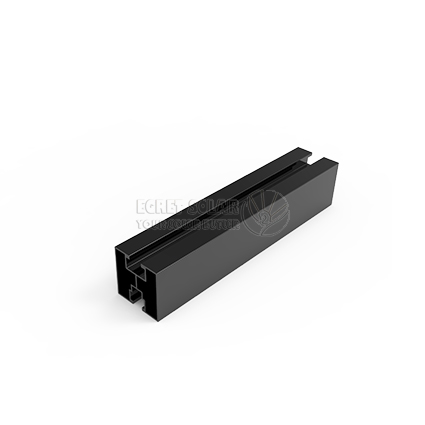

Aluminum profiles for mounting photovoltaic modules. Aluminum Profile Panel Mounting Solar Black Rail 40X40mm is fixed to a handle mounted on a pitched roof or a supporting structure on a flat roof using M10 bolts.
Egret Solar customized your solar mounting rail to meet your demands. The common
length :L2100/2200/3100/3200/4100/4150mm/4200mm.
Brand : Egret Solar
Material :AL6005-T5
Color : Black, Natural.
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

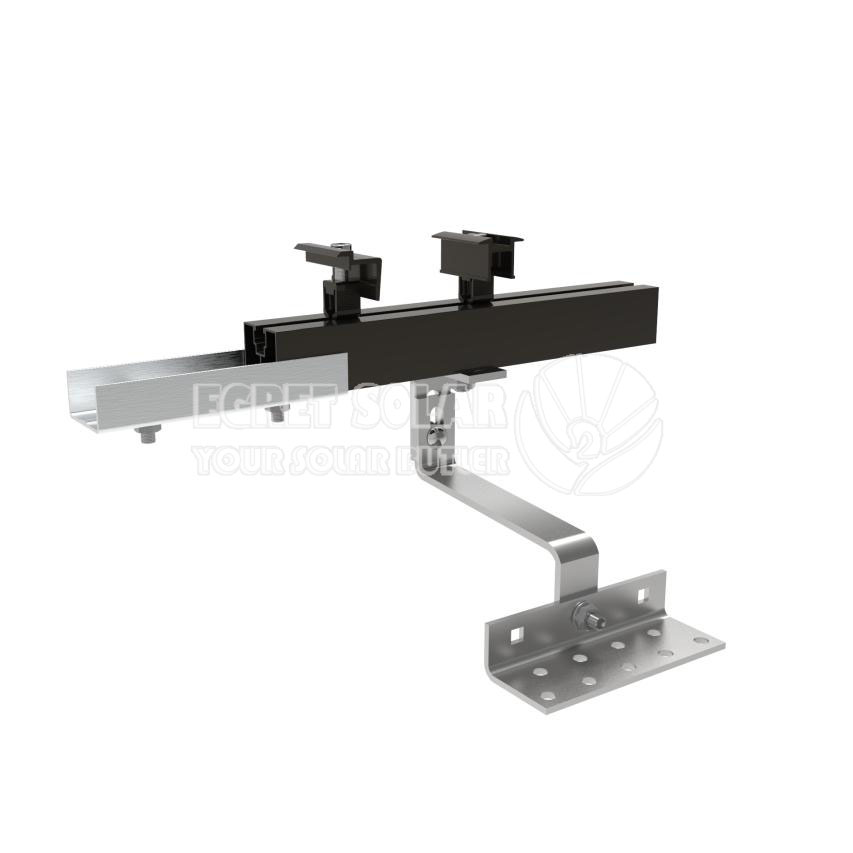

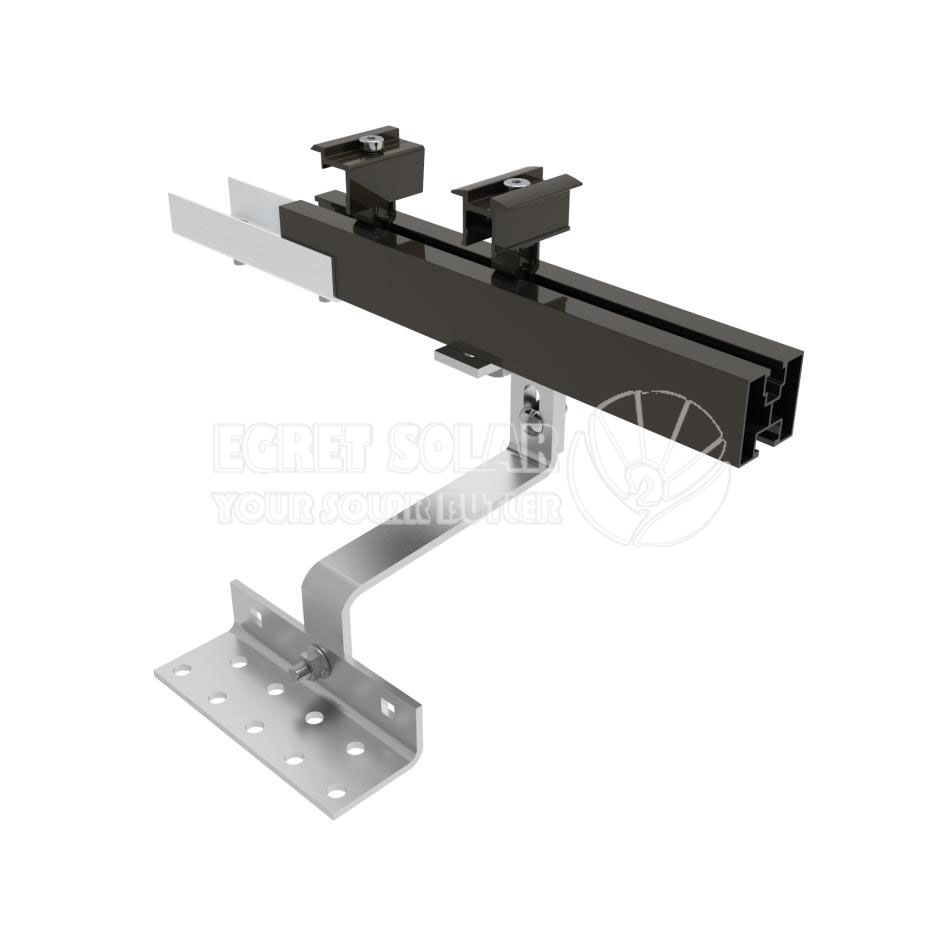

The Aluminum Profile Panel Mounting Solar Black Rail 40X40mm makes installation quick and easy. It match with solar rapid mid clamp and solar rapid end clamp to achieve the fast installation greatly. On the one hand, insert the M10 screw for mounting to roof brackets or to the structure, and on the other hand, a square nut for the Allen screw for mounting the clamp, which holds the PV panel tightly.
Thanks to this solution, there is no need to drill holes in profiles or panels. The rail allows the panels to be moved and adapted to local conditions.
The bottom channel allows you to mount the profile, using M10x20 or M10x25 hexagonal screws, to mounting adapters for double-threaded screws, roof brackets, mounting triangles or other mounting elements.
Product name |
Aluminum Profile Panel Mounting Solar Black Rail 40X40mm |
Model Number |
EG-TR-MR40-Black |
Installation Site |
Solar Panel Mounting System |
Surface Treatment |
Anodized black, sliver. |
Wind Load |
60m/s |
Snow load |
1.2KN/M² |
Warranty |
12Years |
Specification |
L2100/2200/3100/3200/4100/4200/4400/5200mm. customized |
1.High quality AL6005-T5
2.Fast and quick installation.
3.Light weight but strong structure, save shipping costs.
4.OEM servrice and free sample
5.CE certificate
