Aluminum Solar Panel End Clamp

Egret Solar Provide Aluminum Solar Panel End Clamp, It’s fixed height of 30mm, 32mm,35mm, 40mm or 45mm,various heights based on the different thicknesses of solar panels. We control the Aluminum Solar Panel End Clamp quality critically for every step during the manufacturing. We offer service support that is second to none.

Product name: Aluminum Solar Panel End Clamp
Brand : Egret Solar
Material :AL6005-T5
Color : Natural, Black.
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,L/C.
Product Origin : China,Fujian.
Shipping Port :Xiamen

Send Inquiry

Product Description

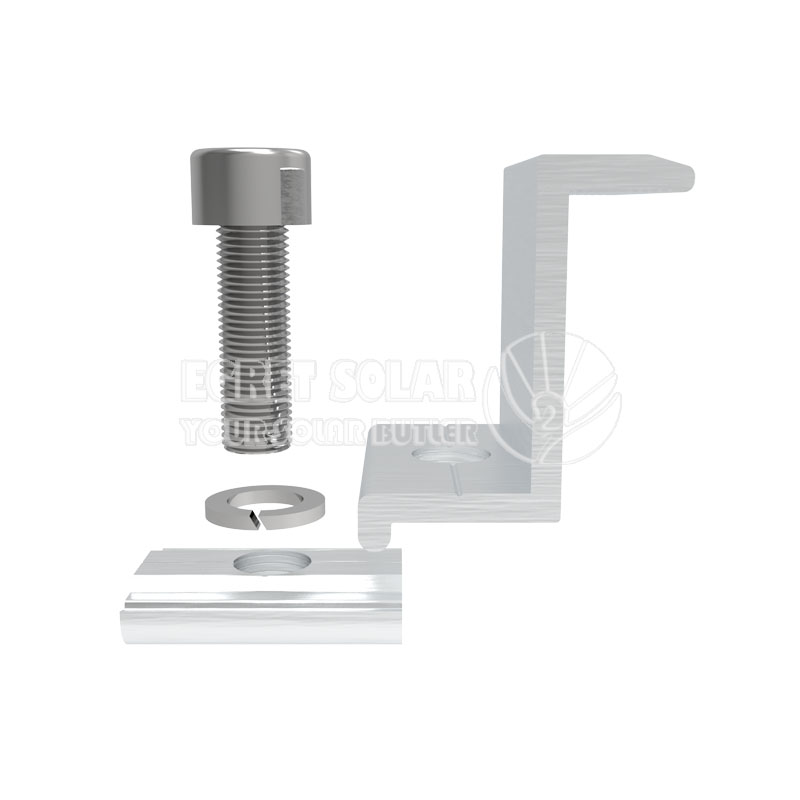

Egret Solar’s aluminum solar panel end clamp have different size suitable for 30mm, 32mm, 35mm, 40mm panels. It’s a fastener between the solar panel and the solar mounting rail. It’s consist of 4 parts: aluminum end clamp, bolt, nut, and the spring washer.
1.The common length of the solar end clamp is L40mm/50mm.
2.The length of the bolt depends on the thickness of the solar panel.
3. The choice of nut depends on the section size of the rail.
4. The Spring washer is standard M8.
Egret solar end clamp is made from high quality anodised aluminium alloy and feature a universal design for easy installation, flexibility and compatibility, robustness and suitability for strong winds and heavy snowfall as well as other harsh climates.

PRODUCT PARAMETERS

Product name	Solar End Clamp
Model Number	EG-EC01
Installation Site	Solar Panel Mounting system
Surface Treatment	Anodized
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	12Years
Specification	L40mm/50mm. customized

PRODUCT SHOW

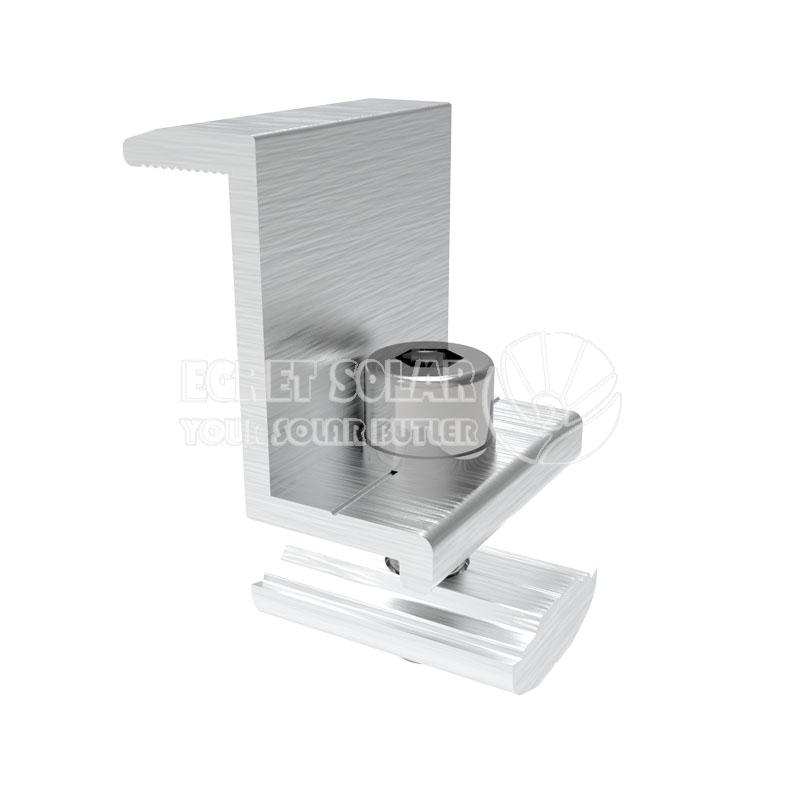

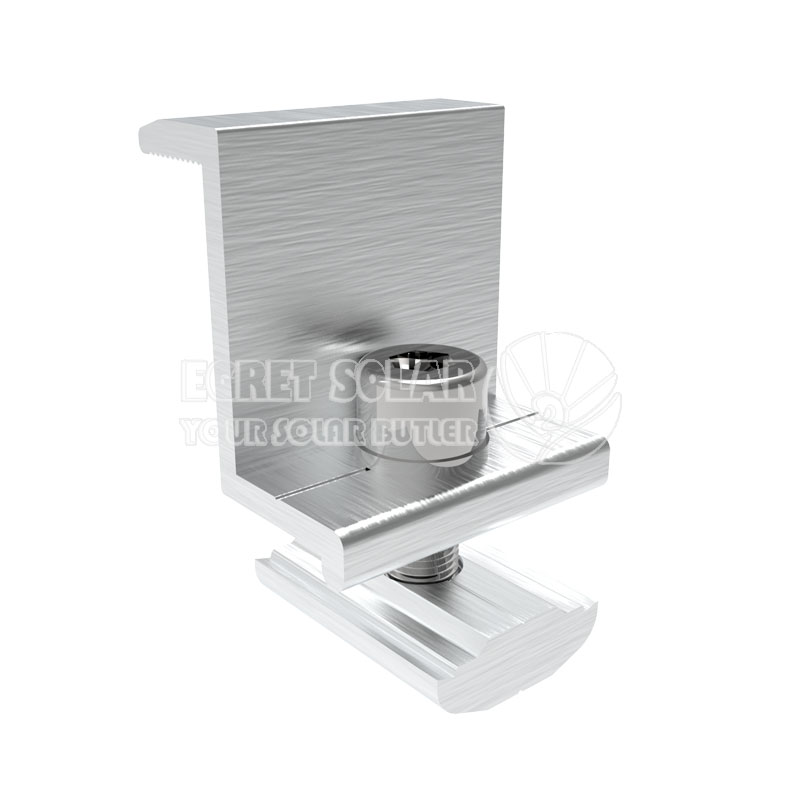

Aluminum Solar Panel End Clamp

OUR ADVANTAGE

1.Standardize the market and reduce costs.
2.Both vertical and horizontal panel mounting
3. Anodizing corrosion resistance
4. Natural or Black color available
5.OEM services.
