Aluminum Solar Panel Rapid End Clamp

Egret Solar offers the Aluminum Solar Panel Rapid End Clamp designed to accommodate panel thicknesses of 30-40mm. This clamp features a universal design with a straightforward "click function" for securing solar modules with frame heights within the specified range. It can be easily and quickly attached between the rail and the solar panel by applying pressure.

Product Name: Aluminum Solar Panel Rapid End Clamp.
Brand : Egret Solar
Material :AL6005-T5
Color : Natural
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

Egret Solar provide Aluminum Solar Panel Rapid End Clamp. The universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-40 mm.It can be quickly fixed between the rail and the solar panel by pressing. As a result of our extensive experience producing Aluminum Solar Panel Rapid End Clamps, our quality is considerably superior to that of the competition. Nevertheless, we continually work to raise both the standard of our goods and the speed at which they are delivered to clients.

PRODUCT PARAMETERS

Product name	Aluminum Solar Panel Rapid End Clamp
Model Number	EG-REC01
Installation Site	Solar Panel Roof Mounting
Surface Treatment	Anodized
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	12Years
Specification	L50mm/70mm. customized

PRODUCT SHOW

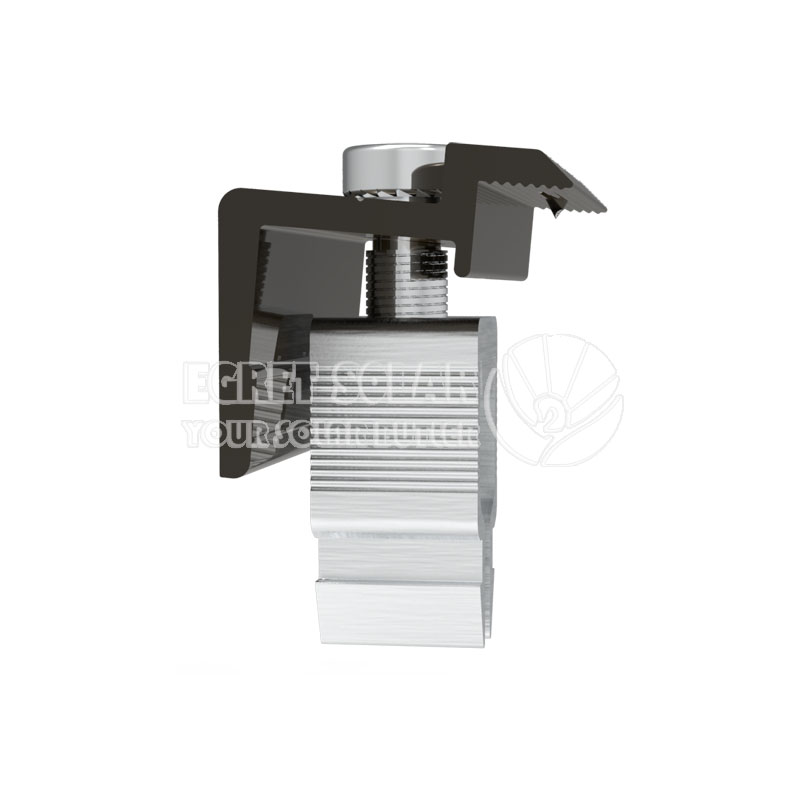

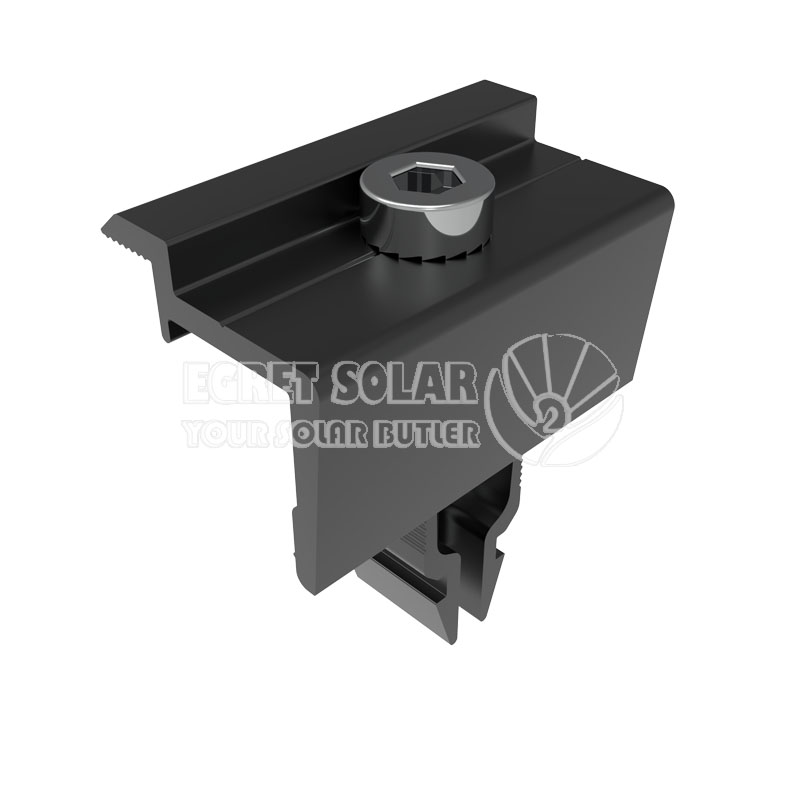

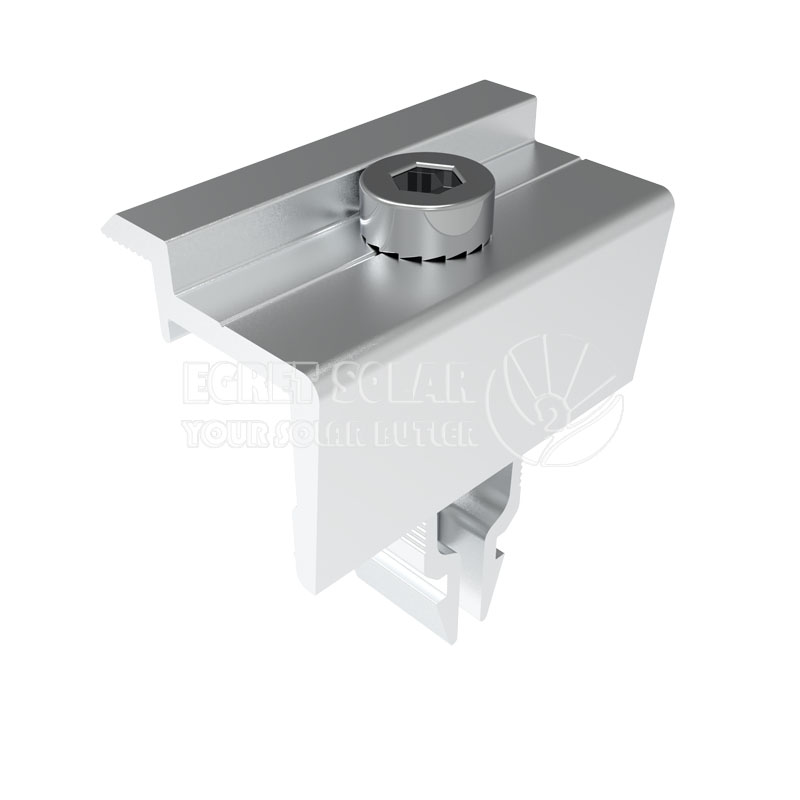

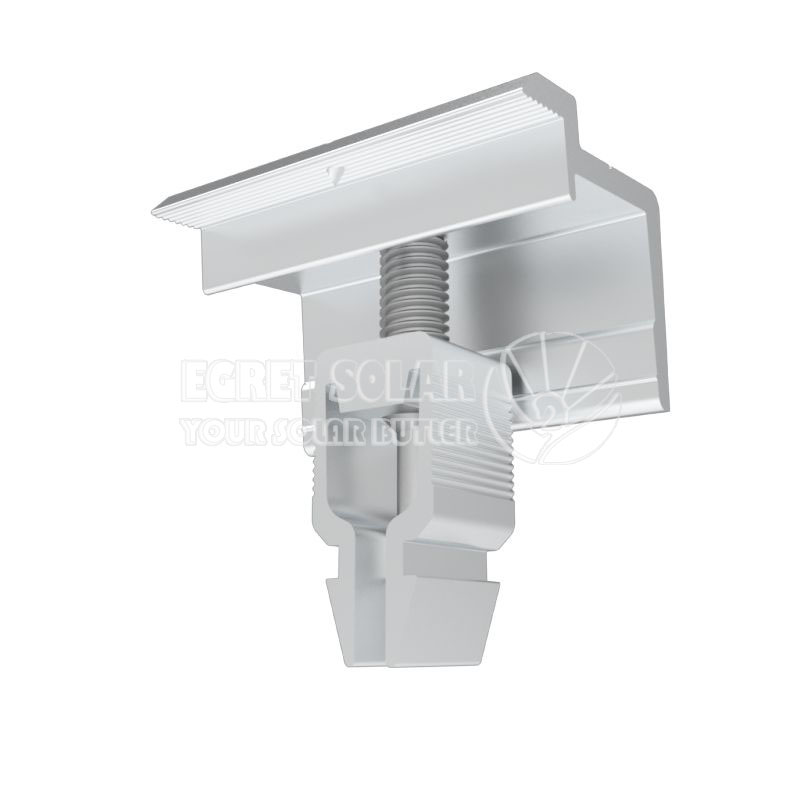

Aluminum Solar Panel Rapid End Clamp

OUR ADVANTAGE

The features of Solar Rapid Clamps:
1. Suit for 30-40mm panel thickness, save stock costs greatly.
2.AL6005-T5 material, high anti-corrosion
3. L50mm/70mm, customize length if need.
4. Pre-assembled bolt & quick nut with aluminum part together.
5. Easy & quick installation

INSTALLATION GUIDE

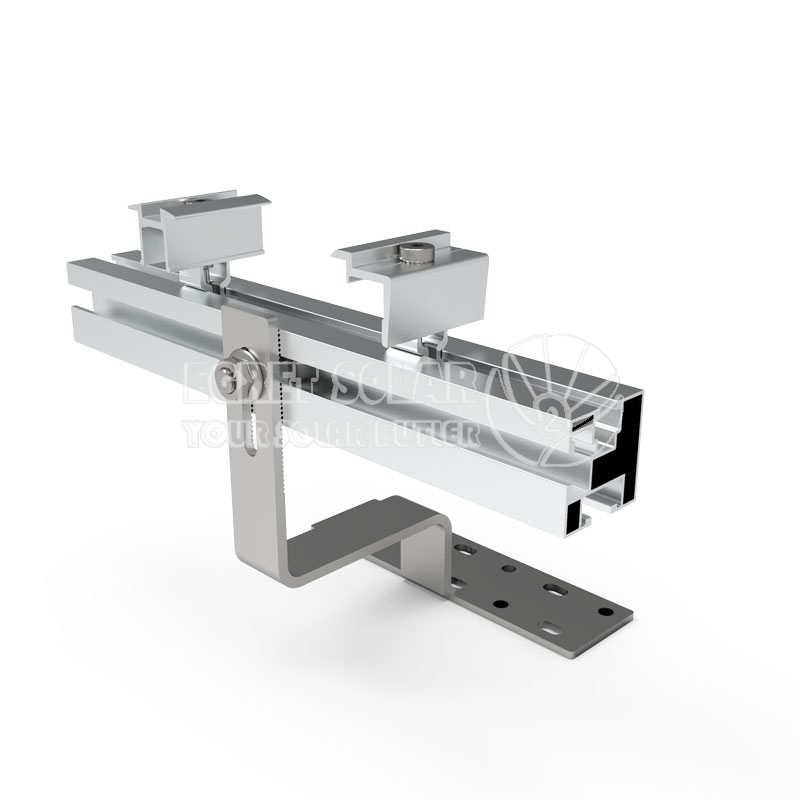

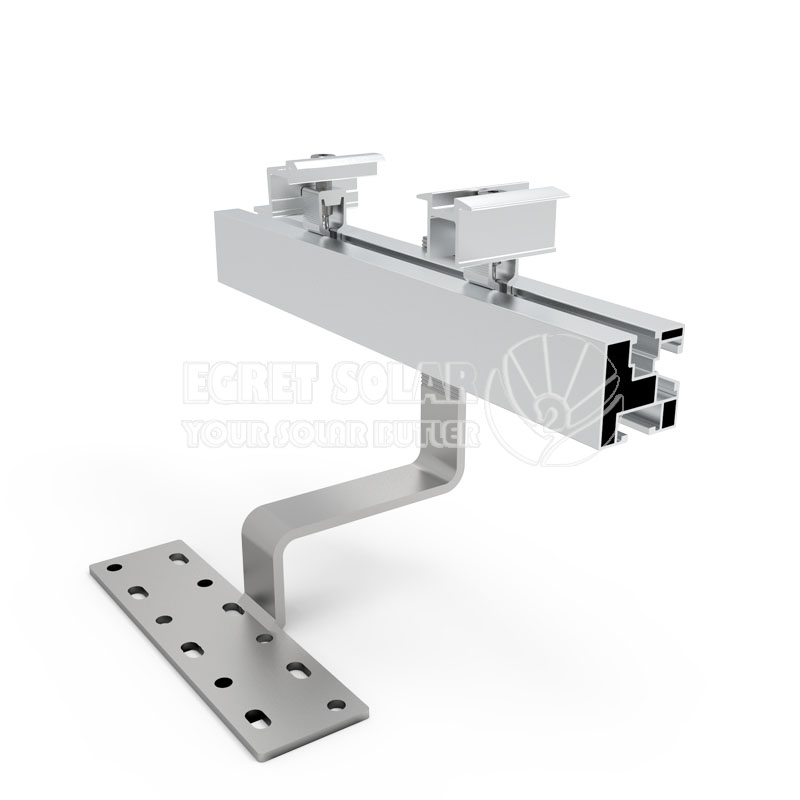

The Aluminum Solar Panel Rapid End Clamps fixed the end of the panel, and press into the Solar Rail 40*40mm with fast clip.

Egret Solar OEM aluminum Solar Panel Clamp For complete whole solar roof mounting system: Solar Tile Roof Hook/ L feet/, Solar mid clamp, end clamp, aluminum rails and rail splice are mainly related components.
Aluminum Solar Panel Rapid End Clamp
