Solar Agricultural Mounting System
  • Solar Agricultural Mounting SystemSolar Agricultural Mounting System
  • Solar Agricultural Mounting SystemSolar Agricultural Mounting System

Solar Agricultural Mounting System

Xiamen Egret Solar Agricultural Mounting System is an innovative dual-purpose solution that integrates solar energy production with agricultural activities. The system structure is designed based on the arrangement of solar panels, the sunlight requirements of crops, and the size of agricultural machinery entrances. It provides a support structure design that meets the requirements, with a high degree of pre-assembly and easy.

Brand : Egret Solar
Material : Aluminum/Steel
Color : Natural.
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T, L/C
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

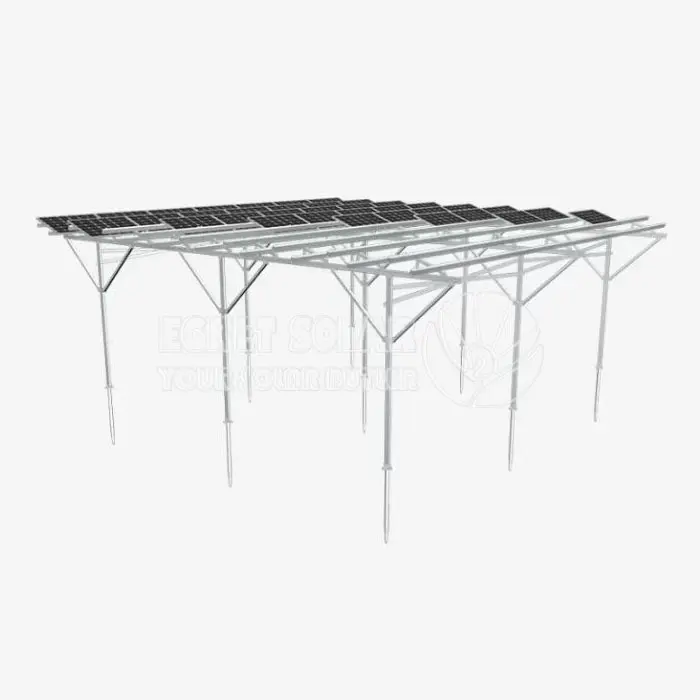

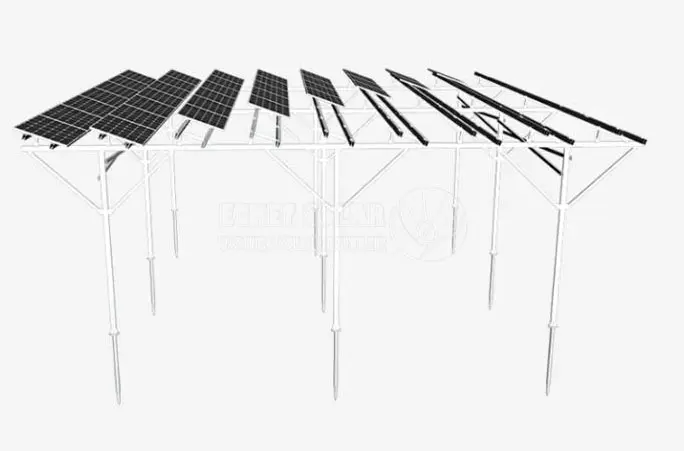

Solar Agricultural Mounting System Solar Agricultural Mounting System

The Solar Agricultural Mounting System also known as an agrivoltaic system, provides a harmonious balance between agriculture and solar energy. This system utilizes durable and corrosion-resistant materials such as aluminum alloy and galvanized steel to ensure longevity. Panels are elevated to a customizable height, allowing for unobstructed farming activities underneath while maintaining optimal sunlight exposure for both crops and solar panels. It is a renewable energy agriculture by combining food production with clean energy production

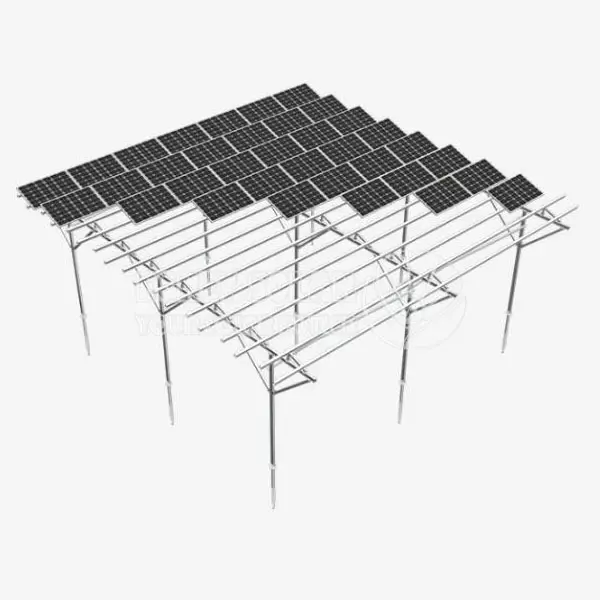

Agrivoltaic System Farmland Solar Energy System

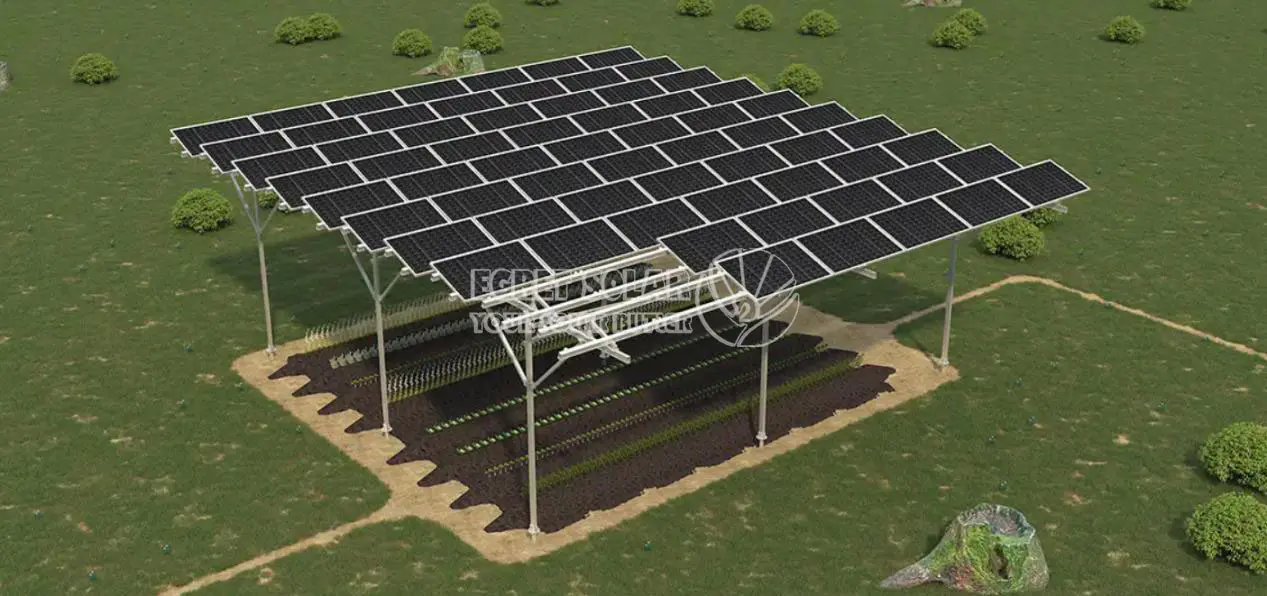

Product Application Examples

Agricultural Mounting System

Advantages:

● Efficient Land Use: It’s a farmland solar energy system, which allows simultaneous crop cultivation and solar energy production.

● Customizable Design: Solar Agricultural mounting system can adjust panel height and angle to meet specific agricultural and energy needs

● Weather-Resistant Materials: Corrosion-resistant and durable for long-term use.

● Improved Crop Growth: Partial shading from panels can reduce crop heat stress and conserve water.

● Sustainable Development: Solar Agricultural mounting system is a sustainable agricultural solution, promotes renewable energy use while maintaining farmland.


PRODUCT PARAMETERS

Product name Solar Agricultural mounting system
Material AL6005-T5/Galvanized Steel
Installation Angle 0-60°
Surface Treatment Anodized/hot-dip galvanized
Warranty 12Years
Height 2m to 5m
Snow Load 1.4 kN/m²
Wind Load Up to 60 m/s
Bracket Color Natural or Customized

Sustainable Agricultural Solution Renewable Energy Agriculture

FAQ

Q: What types of crops are compatible with Solar Agricultural mounting system?

A: Crops that thrive under partial sunlight, such as vegetables, herbs, and certain grains, are highly compatible.

Q: Can this system accommodate large farming equipment?

A: Yes, the system is designed with adjustable height to allow easy access for machinery.

Q: How does the system impact crop yield?

A: It can enhance crop yield by reducing heat stress and providing a microclimate that retains soil moisture.

Q: What is the lifespan of the agricultural mounting system?

A: The system is built with high-quality materials and typically lasts over 25 years with minimal maintenance.
