Solar Aluminum Mini Rail for Panel Installation

Egret solar aluminum mini rail for panel installation is designed for solar tin roof installation and fixed with rapid mid clamp solar and rapid end clamp solar.Available in lengths like 200mm, 250mm, 300mm, 320mm, and 350mm, the choice depends on the roof's crest distance. Additionally, customization is possible for both length and dimensions to suit specific installation requirements.

Brand : Egret Solar
Material :AL6005-T5
Color : Natural
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

The solar aluminum mini rail for panel installation is common mounting solution for solar panel trapezoidal and corrugated metal roof installation. The length generally is 200mm/250mm/300mm/320mm/350mm,,which is depended on the roof crest distance. Besides, the length and dimension is customization. No additional rails and brackets are required, and the solar panels can be directly installed on the short rails. It can save the costs greatly.
Solar aluminum mini rail for panel installation works with Rapid Solar Mid Clamp and Rapid Solar End Clamp, The installers can quickly complete the installation, saving labor costs.

Our factory has over ten years of Solar Aluminum Mini Rail for Panel Installation experience. Depending on the rich experience on the product quality, development and excellent customer service, the business expand very quickly in the right way.

PRODUCT PARAMETERS

Product name	solar aluminum mini rail for panel installation
Model Number	EG-TR-MR60
Installation Site	Solar Panel Mounting System
Surface Treatment	Anodized
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	12Years
Specification	L200/250/300/320/350mm. customized

PRODUCT SHOW

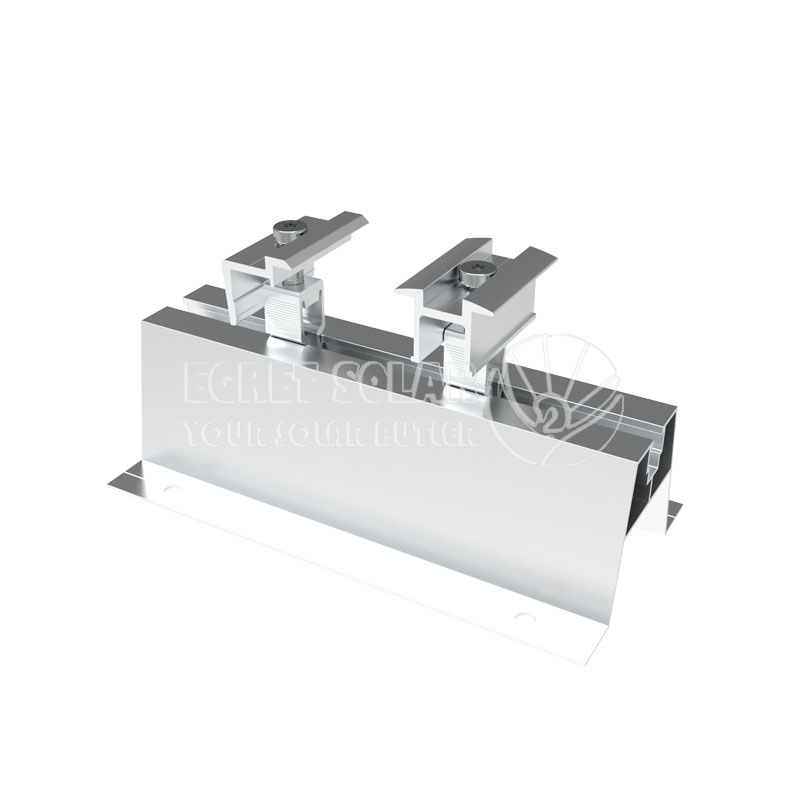

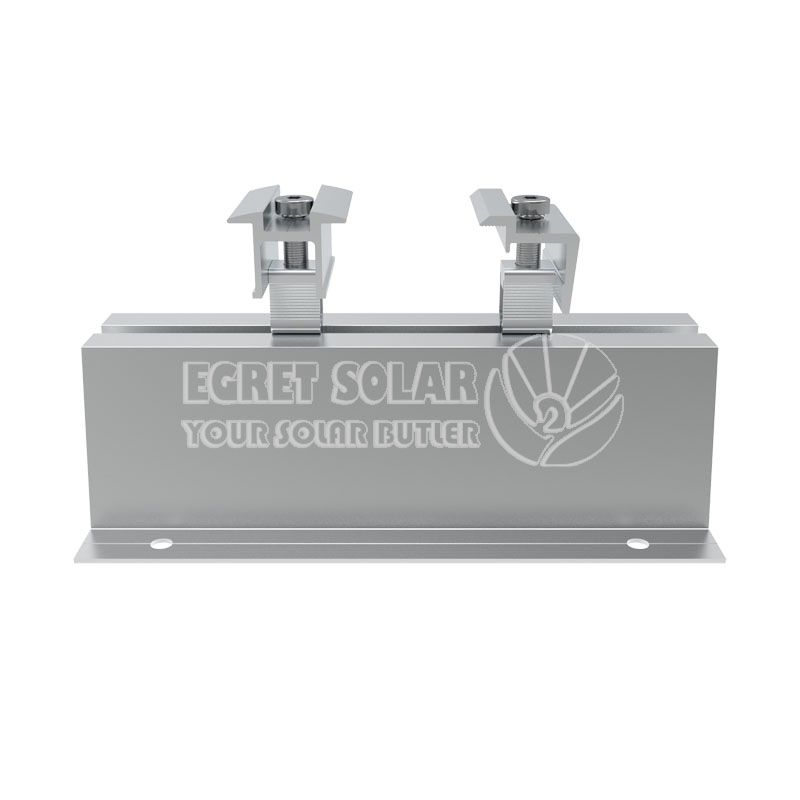

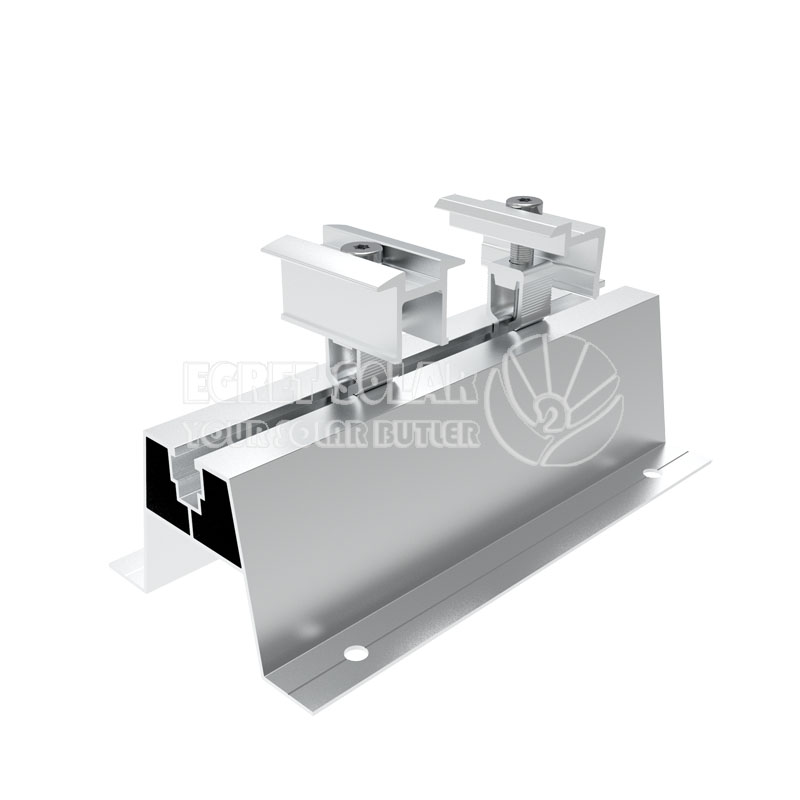

Solar Aluminum Mini Rail for Panel Installation

COMPONENTS LIST

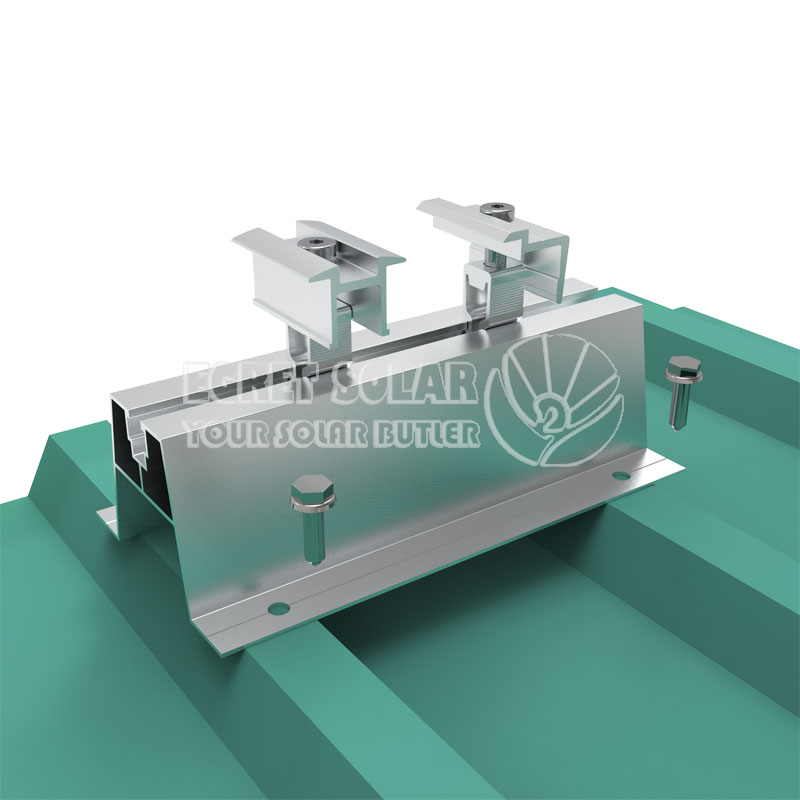

Normally the solar mini rail work on the Solar Metal Roof System, the main components for installation is solar mini rail, solar rapid mid clamp, solar rapid end clamps, and 4 pcs of self-typing screws to fix the rail on the roof sheet.It’s an easy and quick solar mounting solution for PV trapezoidal metal roof.

Solar Aluminum Mini Rail for Panel Installation
