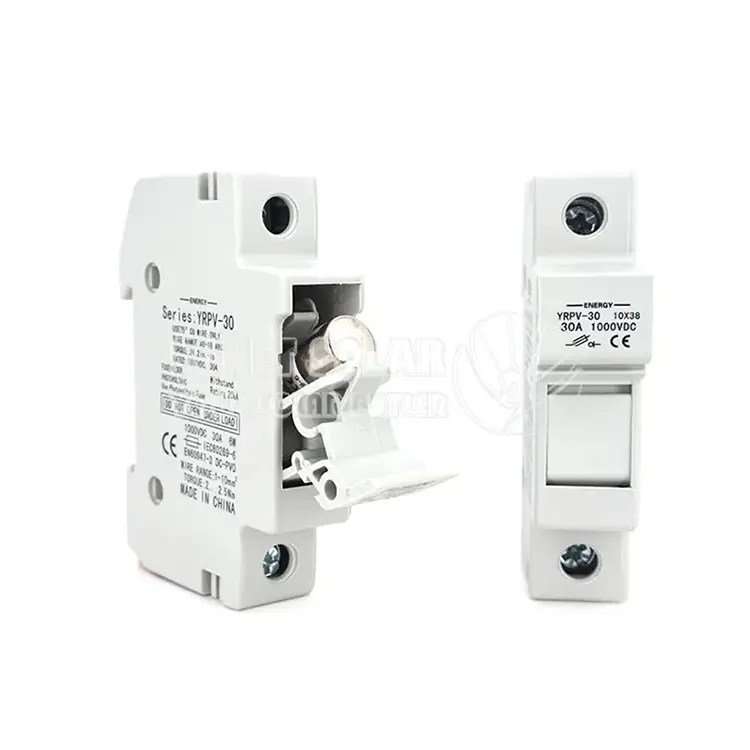

Solar DC Fuse Holder

The features of the Solar DC Fuse Holder 10×38 is 1000V DC & 1500V DC rated voltages.They have been developed to offer a compact, safety and economic protection solution in photovoltaic installations where due to the increase of the power and technologic evolution, no-load voltages above 1000V DC can be achieved. Modular fuse holders for 10×38 are according IEC/EN 60269 standard. Compact design, with reduced distances.

Solar DC Fuse Holder 10x38mm for Solar PV Fuse with TUV and ROHS is used in DC combiner box in solar PV systems. When PV panel or inverter causes overload or short circuit, it trip off immediately to protect solar panels. DC fuse also used to protect other electrical parts in DC circuit, when overload or short circuit.A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.

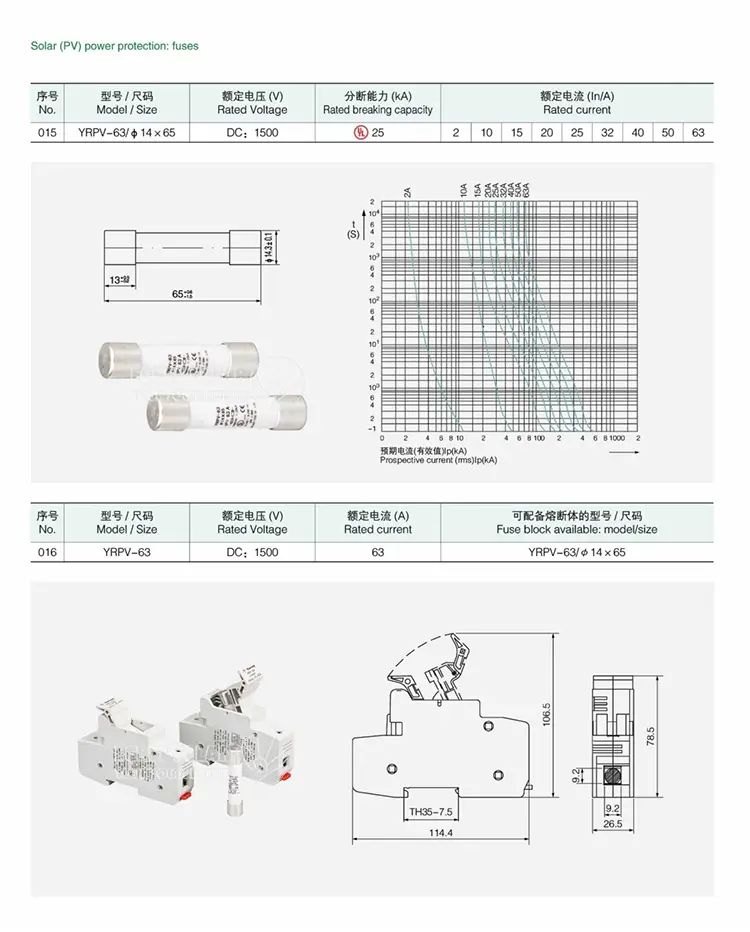

Rated Voltage: DC 1000V,1500V

Rated Current: 30A

Size of in-line Fuse: 10x38mm (Can be replaced.)

Range ampere of Fuse: 6A,8A,10A,12A,15A,20A,25A,30A

Rated breaking capacity: 33kA

Mounting Support: DIN rail 35mm

Advantage of Solar DC Fuse Holder 10x38mm

1.PV Electricity Generation Instruction

Solar PV electricity generation system is formed by lots of PV connection in series,and they form PV array by parallel installation,meantime,the current generated by lots of PV array is concentrated in PV inverter from the PV junctions box,PV inverter turn DC to AC so as to connect with utility grid or to be used in home appliances.

2.Application

Solar DC Fuse Holder is suitable for solar pv power generation system, rated voltage to 1500V, rated current to 630A,used in pv power generation equipment as a pv module string and pv array for over current protection,and pv panels and batteries connected in series and parallel,to charge variable flow system for short circuit breaking protection,in pv station and inverter rectifier system for short-circuit breaking protection,as well as pv power eneration system,inrush and short circuit fault voltage for quick break protection,rated breaking capacity to 10-50KA,products confirms to IEC60629.1 and 60629.6.

3.Normal operating conditions

The around temperature max value can up to 90℃,min limit value up to -40℃,the installation altitude is not over 2000m(our company can customize based on your special requirement.

4.Use category

“PV” means the full range DC breaking protection on solar photovoltaic power generation system.

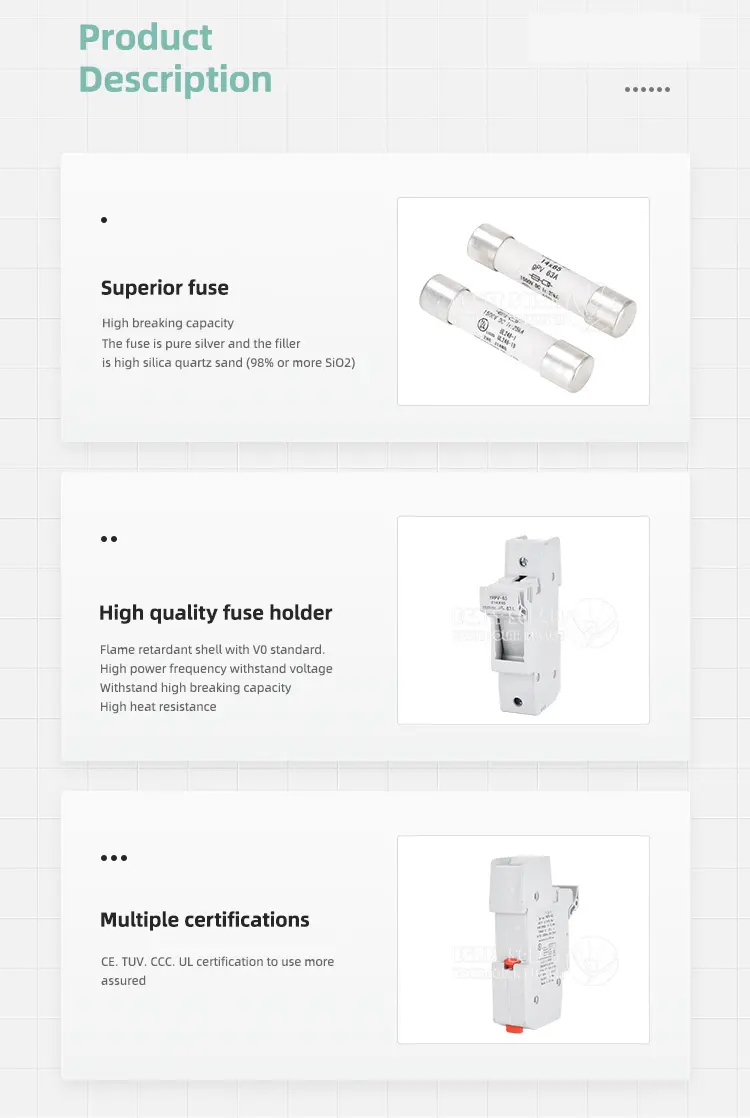

5.Structural features

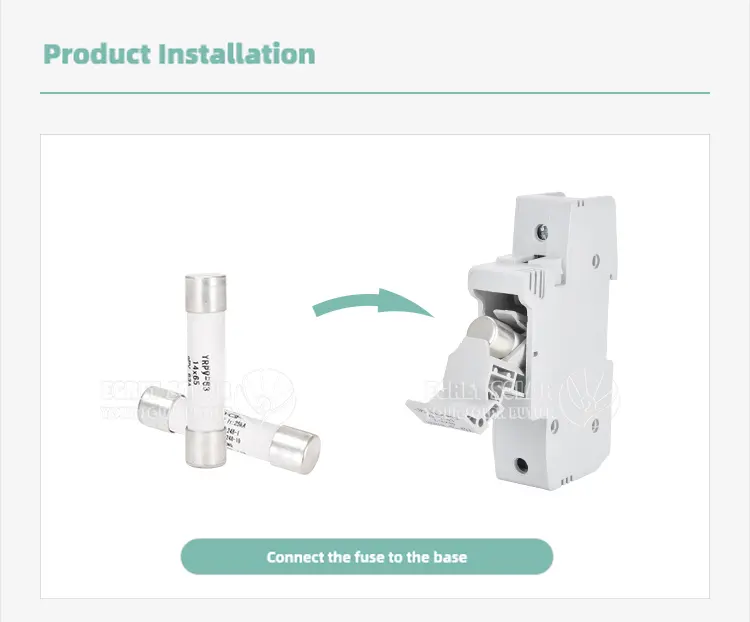

Solar DC Fuse Holder link is made of pure silver(or silver strings),welding low tin and encapsulated in the melt to be made of high-strength porcelain, the fuse tube filled with high-purity quartz sand chemically processed as the arc medium.Fuse body is connected with contacting terminals by spot welding fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces,the connection made by riveting as the support of the appropriate size fuse body parts.This series fuse has a compact and convenient device,use security,beautiful appearance,etc.

FAQ

Q:What is the benefits of the fuse?

A: Saves time and money. Because fuses are an enclosed, non-venting design, they eliminate the need for additional system guards or barriers to protect from venting.

Q:What is the influence of the ambient temperature?

A: The current carrying capacity tests of fuses are performed at 25C & will be affected by changes in ambient temperature. At higher ambient temperatures, a fuse will respond faster to a given overload. Conversely, at lower ambient temperatures, a fuse will respond slower to a given overload.

Q: What is the material of the fuse holder clip?

A: Copper.

Q: Do you have forwarder?

A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.

Q:What's the Fuse guarantee?

A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.

Q:What's about MOQ? Delivery time ?

A: 1pcs for Fuse.

Q: What's the payment term?

A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION for small order .
