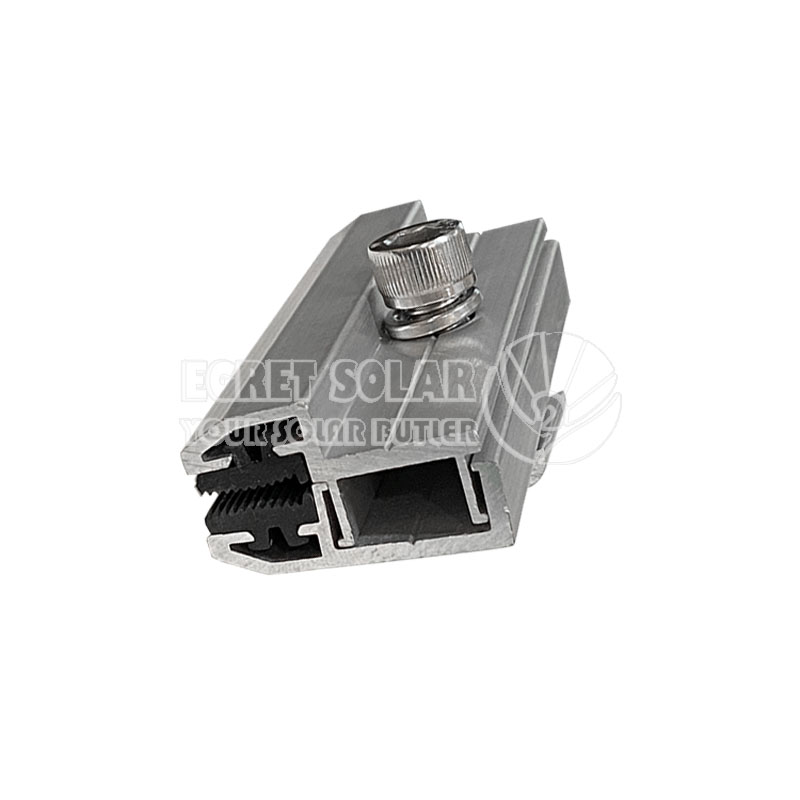

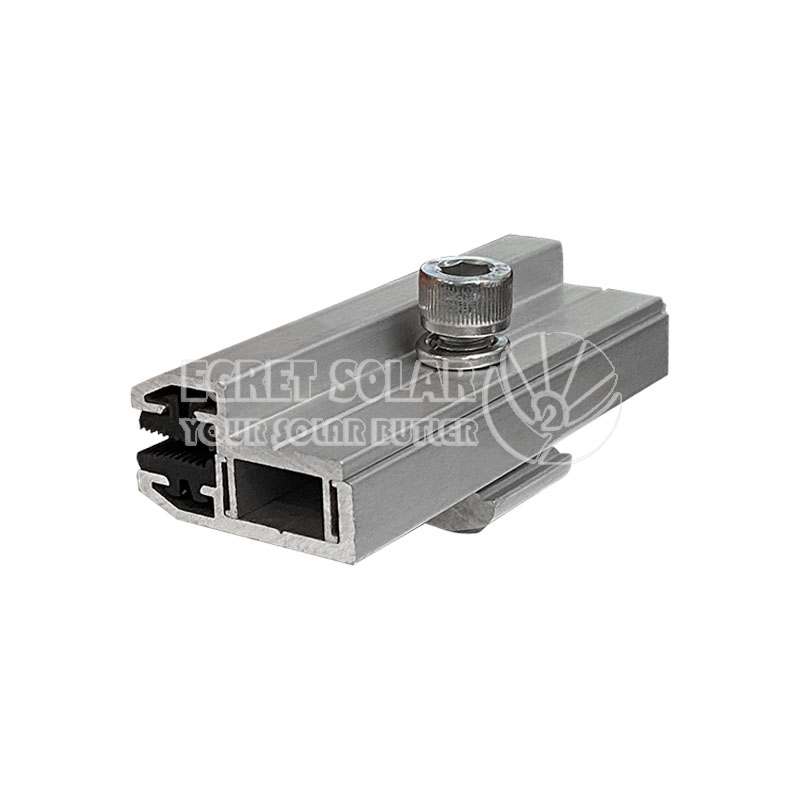

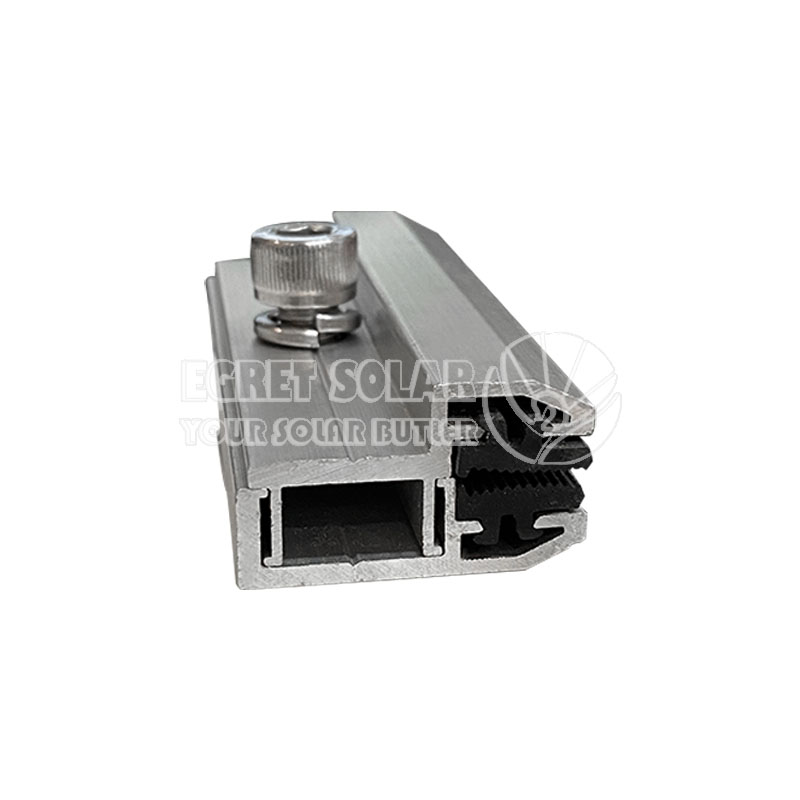

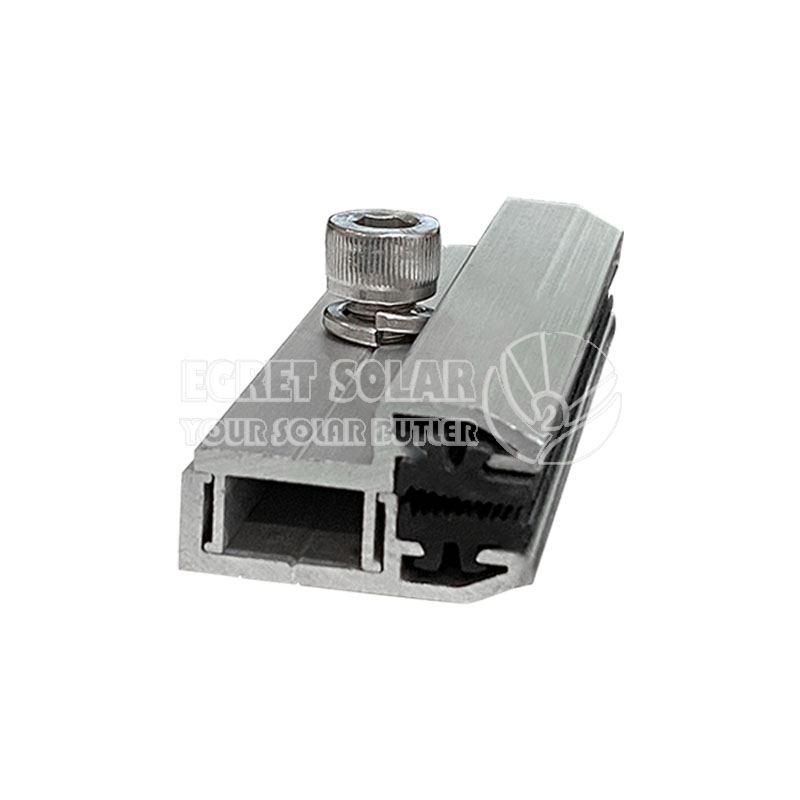

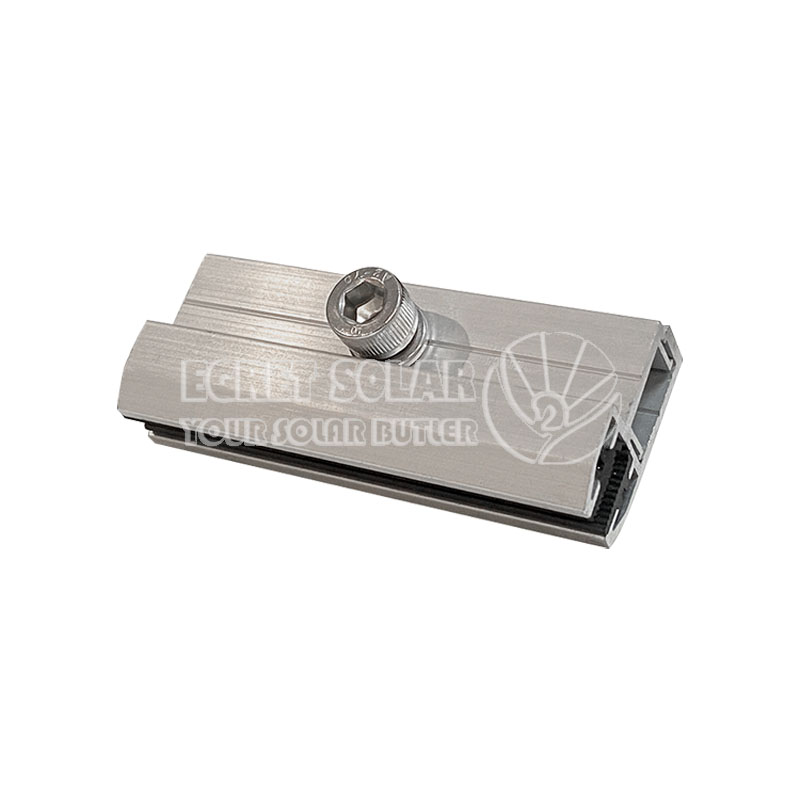

Solar Frameless Thin Film End Clamp

Solar frameless thin film end clamps serve the purpose of securing different specifications of thin-film or glass unframed solar modules. Crafted from anodized extruded aluminum (6005-T5), they include components such as bolts, EPDM rubber, and stainless steel fasteners. The middle rubber element offers protection to thin-film solar panels, preventing damage. Through appropriate clamping force, these clamps effectively prevent solar panel movement while maintaining the panels' integrity.

Brand : Egret Solar
Material :AL6005-T5
Color : Natural
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

The solar frameless thin film end clamps are suit for 6-10mm thin film panel thickness. The Rubber in middle will protect thin-film solar panels well. Appropriate clamping force does not damage solar modules and can prevent the solar panel moving effectively.
The material is anodized extruded aluminum6005-T5,Bolt,EPDM rubber and stainless steel fastener. High quality material and accurate design can fix the thin film stable. Frameless glass panel solar frameless thin film end clamp which can be used for standard size solar thin-film.

PRODUCT PARAMETERS

Product name	Solar Frameless Thin Film End Clamp
Model Number	EG-TF-EC01
Installation Site	Solar Panel Mounting System
Surface Treatment	Anodized
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	12Years
Specification	L80/120/150/200/250/300mm. customized

PRODUCT SHOW

Solar Frameless Thin Film End Clamp

OUR ADVANTAGE

1.Material:AL6005-T5&SUS304 bolt
2.High Class Anodized Aluminum
3.Tilt-in nut easy to install
4.Fix 6-10mm thin film solar clamp
5.No need to drill into roof and can connect rail directly
6.Cost efficient and safe for panel
