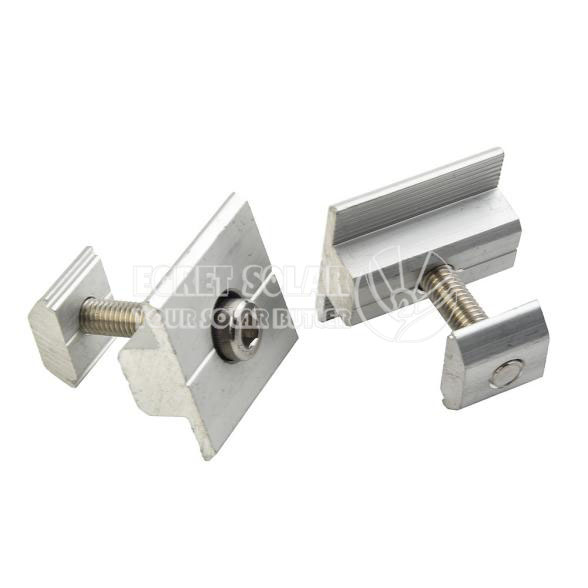

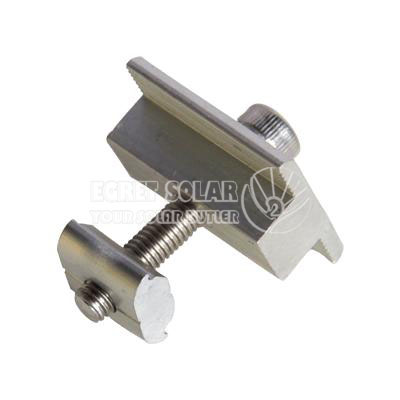

Solar Panel Rail Mid Clamp

Egret Solar provide solar panel rail mid clamps for solar panel mounting system installation. The Aluminum mid-clamp and end clamp group,which are applied to 35mm-50mm framed solar panel.With natural sliver or black anodized Aluminum material 6005-T5. With accurate design, the mid-clamp can make the connection between the panels firmly.Aluminum framed panel clamps for fixing panel on the rail.

Brand : Egret Solar
Material :AL6005-T5
Color : Natural, Black.
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

Egret Solar Panel Rail Mid Clamp have universal and code-compliant mounting system for attaching solar panels to the roof of your property. Designed to be used with either tiled or tin roofs, with any slope from 0-60° (either flat or pitched), and fully cyclone rated even for wind region D. The easy insertion modules mean that you don't have to slide each attachment along the rail to get it in place, they slot in quite easily at the very spot you want to attach them. A full range of components are available for use with 35mm/40mm thick modules.

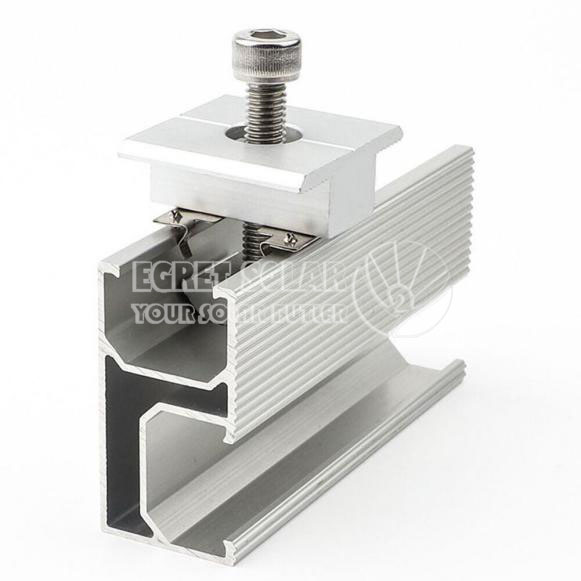

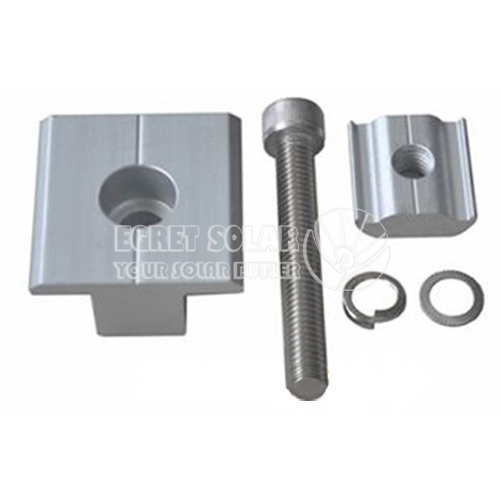

Egret Solar Panel Rail Mid Clamp is made of high-strength 6005-T5 aluminum alloy and 304 stainless steel, which is strong in toughness, corrosion-resistant, and can be used in high temperature, cold or humid weather.Egret Solar Panel Rail Mid Clamp with T-shaped design, these aluminum solar panel middle clamps are designed to clamp aluminum profile rails securely to solar panels, holding the solar panel edges tightly in the middle.

Easy to install:Egret solar panel mounting bracket has pre-drilled mounting holes on the surface, including Solar Panel Rail Mid Clamp and screws, which can easily fix the solar panel to the bracket surface, making the installation work quick and convenient.

Application: Solar Panel Rail Mid Clamp Suitable for most solar panels on RVs, houses and boats, balcony power plants, cabins, caravans, RVs, flat tiles and standing sheets.

PRODUCT PARAMETERS

Product name	Solar Panel Mid Clamp
Model Number	EG-IC08
Installation Site	Solar Panel Mounting System
Surface Treatment	Natural/black.
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	12Years
Specification	L40mm customize.
