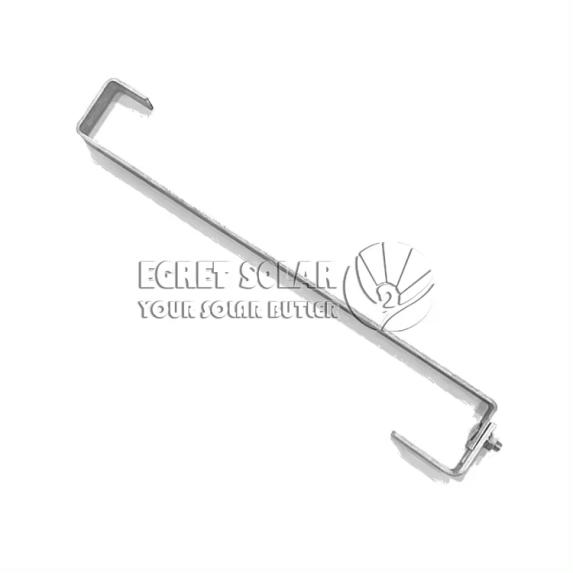

Solar Roof Hook With Type S

Egret Solar Roof Hook With Type S is designed for solar tile roof. The S type roof hook with top adjustment is used to mount the supporting structure of photovoltaic panels on a roof covered with ceramic and concrete tiles.

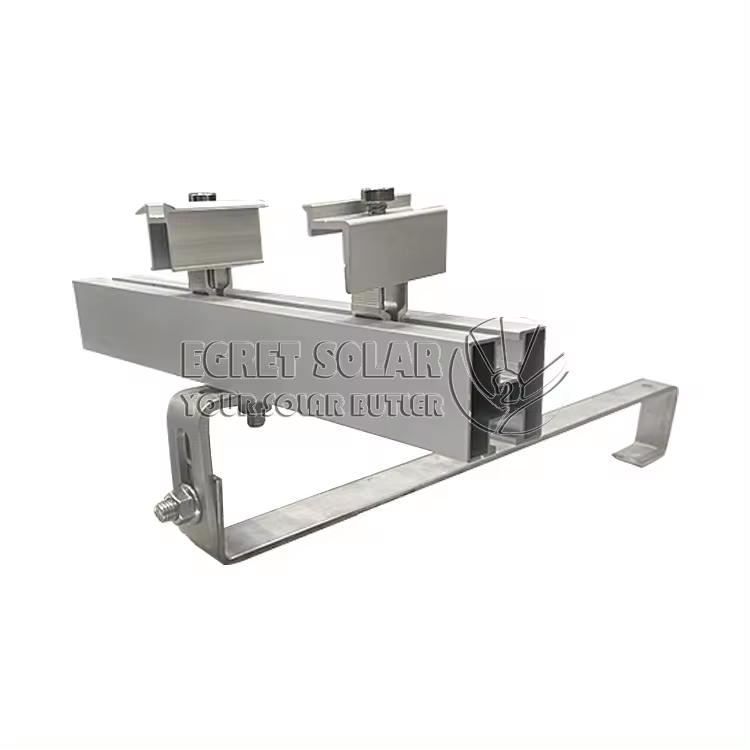

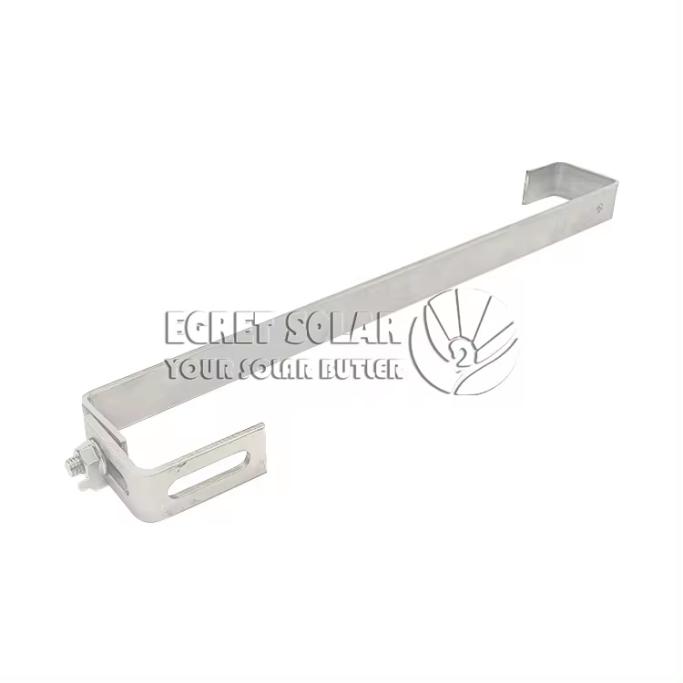

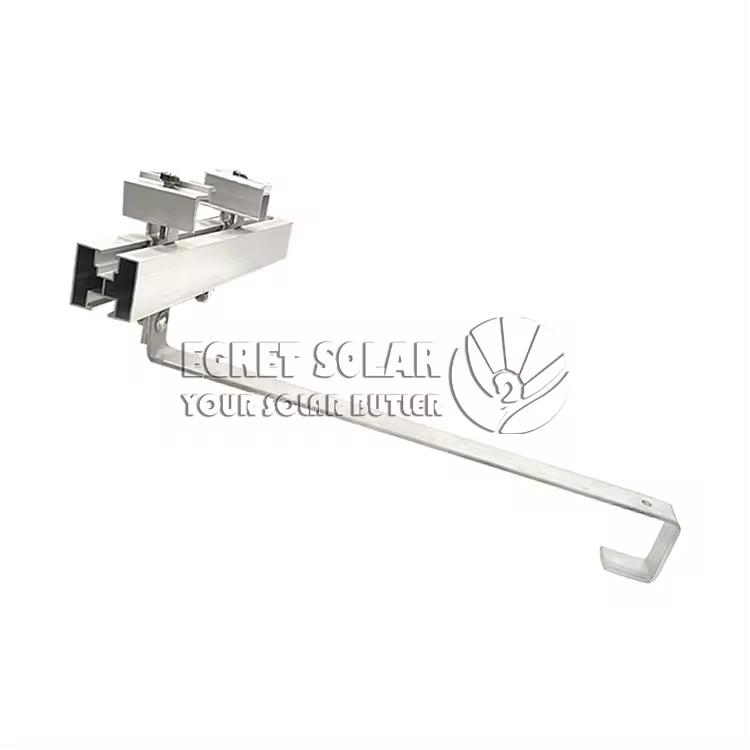

Solar Roof Hook With Type S is made of stainless steel. it is weather resistant, so it does not lose its properties for many years.Hook with connector,M10x25 screw + M10 flange nut made of A2 stainless steel. The upper part of the element is equipped with an M8 hole, which allows you to screw the holder to the batten and increase the rigidity of the structure. The longitudinal opening in the column allows for the adjustment of the mounting rails.

The Solar Roof Hook With Type S to compensate for the unevenness of the roof truss to which the hooks are attached. For buildings with a sloppy truss, this is the only way to accurately prepare a stable support for the horizontal structural rails for mounting the solar panels.

Solar Roof Hook With Type S Main features:

1. Very solid and durable;

2. Stainless steel guarantees longevity without the risk of possible corrosion;

3. Adjustable, easy to install, attached to battens, ceramic and concrete roof tiles.

PRODUCT PARAMETERS

PRODUCT SHOW

INSTALLATION GUIDE

FAQ

Q: Can you do OEM?

A: Yes, customize stainless steel hook and aluminum rail or components are available. And will refund the mold/tooling charge once the order quantity reaches certain pcs.

Q: Samples are available?

A: Yes. Please contact us for more details.

Q: What's the packing?

A: Normally pack the solar accessaries by carton and then stack on plywood pallets. Iron pallet for long profiles. All the pallets will be wrapped by film to keep water resistance. Customized package with your logo is available.

Q: What's the MOQ?

A: Sample order is acceptable. No MOQ for stardard items.
