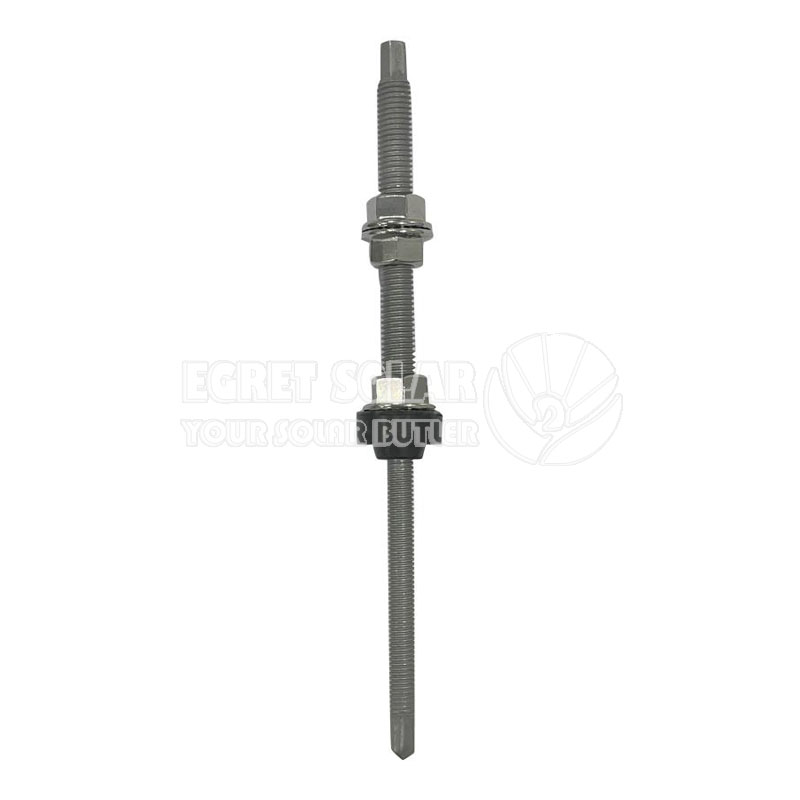

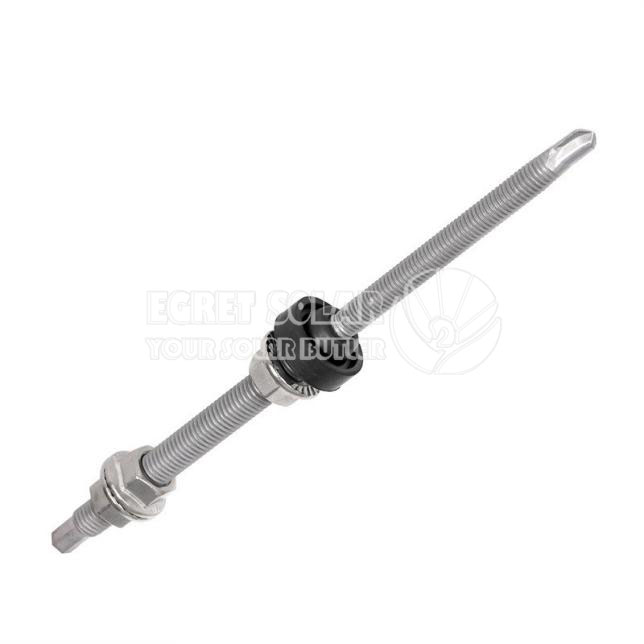

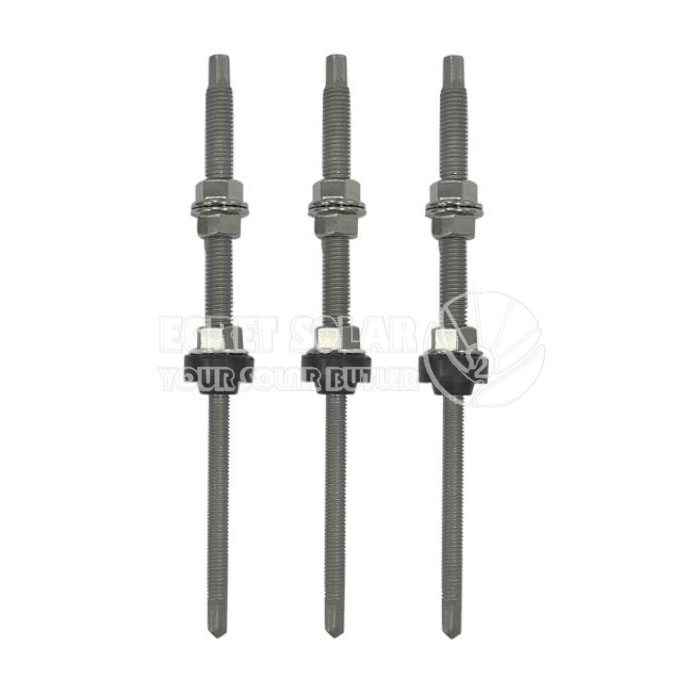

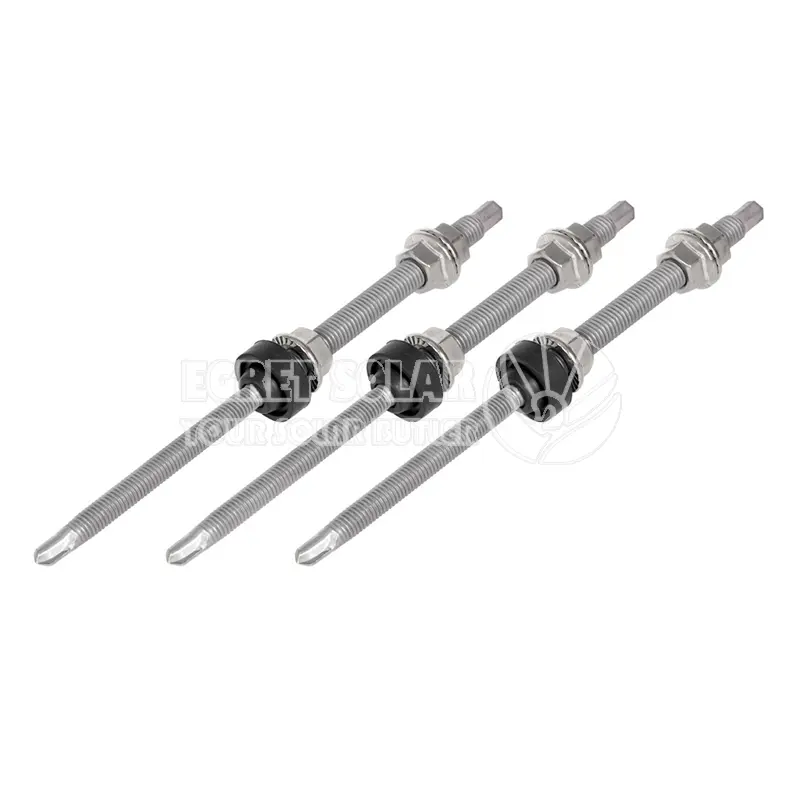

Egret Solar OEM Solar Roof Mounting Hanger Bolt For Steel Beam.
Brand : Egret Solar
Material :SUS304
Color : Natural.
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen
Egret Solar provide Solar Roof Mounting Hanger Bolt For Steel Beam. The common size are M10/M12*200/250/300/350mm.
Egret Solar Roof Mounting Hanger Bolt For Steel Beam is frequently used with L feet(L bracket) or stainless steel plate(adaptor) to combine with mounting rail.
Egret Solar Roof Mounting Hanger Bolt used to screw into steel purlins or wooden rafter or corrugated and trapezoidal roofs. It comes with three flange nuts and one UV resistant EPDM washer. The washer will create a weatherproof seal when pushing against the roof sheet.
Egret Solar provide Solar Roof Mounting Hanger Bolt For Steel Beam have material SUS304 or Carbon Steel .
SUS304 material :
When fixing into the steel purlin, it need to pre-drill on steel purlin, then fixed hanger bolt.
Carbon Steel:
This carbon steel hanger bolt type can self tapping into the steel purlin directly, which is more convenient while installation.
Product name | Solar Roof Mounting Hanger Bolt For Steel Beam |
Model Number | EG-HB02 |
Installation Site | Solar Roof Mounting System |
Surface Treatment | Sandblasted |
Wind Load | 60m/s |
Snow load | 1.2KN/M² |
Warranty | 12Years |
Specification | Normal,customized. |
Q1. What's the material of hanger bolt?
A:It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.Material carbon steel also can be offered if needed
Q2. Are these hanger bolt pre-assembled before shipment?
Yes, hanger bolt will pre-assembled with 3 flange nut and one EPDM rubber.
Q3:Can I get a sample for testing?
A:Yes, samples available before orders.
Q4: What’s your warranty?
A:12 years.
