A Type Solar Aluminum Ground Mounting Bracket

A type solar aluminum ground mounting bracket, which is a common ground bracket in photovoltaic brackets, is appropriate for locations with little snow cover and strong winds. When constructed from the AL6005 aluminum alloy, the entire structure exhibits enhanced corrosion resistance and aesthetic appeal compared to steel. The inclusion of horizontal brackets offers better protection for solar panels, and the design features like high pre-installation readiness and lightweight construction significantly reduce labor costs.

Payment :T/T,Paypal
Product Origin : China
Color : Black,Silver
Shipping Port :Xiamen
Brand : Egret Solar
Certification :ISO/SGS/CE
Material :AL6005-T5
Panel direction: Horizontal row

Send Inquiry

Product Description

According to the diverse soil conditions, this A type solar aluminum ground mounting bracket may be utilized with screw ground piles or concrete bases in large-scale solar ground projects. The overall structure has higher anti-corrosion performance and aesthetics when made of the aluminum alloy AL6005 than when it is made of steel. The horizontal brackets are more in place for the protection of battery panels, and it has the qualities of high pre-installation and light weight, which considerably save labor costs.

Lead Time:

Quantity (watts)	1-1000000	＞1000000
EST. Time（days）	25	To be negotiated

PRODUCT PARAMETERS

Product name	A type solar aluminum ground mounting bracket （Horizontal row）
Model Number	EG-GM01-A-Horizontal
Installation Site	Ground mounting system
Surface Treatment	Aluminum Andized
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	25 YEARS
Specification	1200mm/1600mm/1800mm/2000mm/2500mm

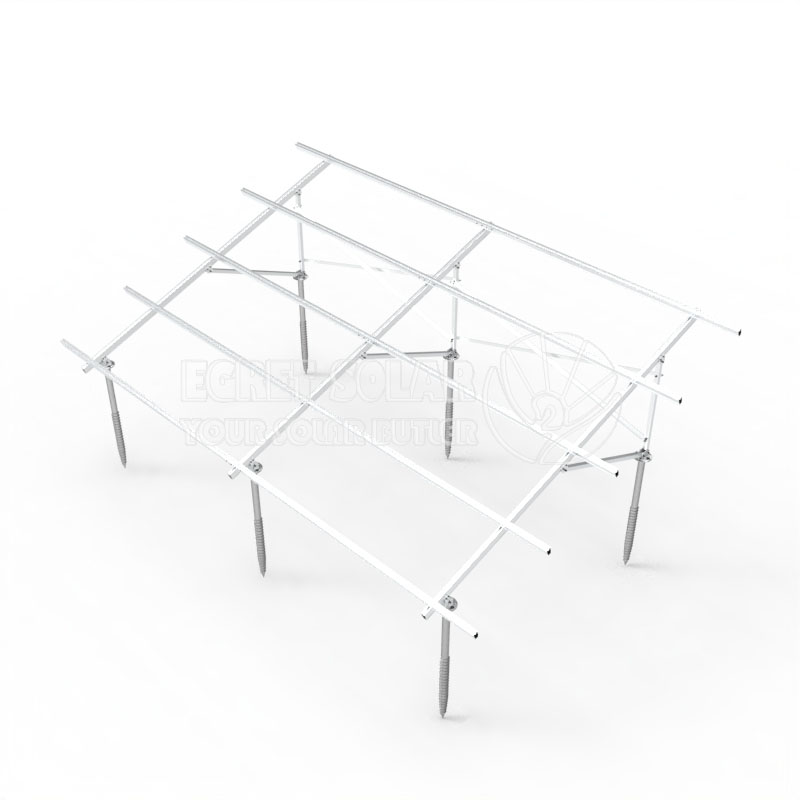

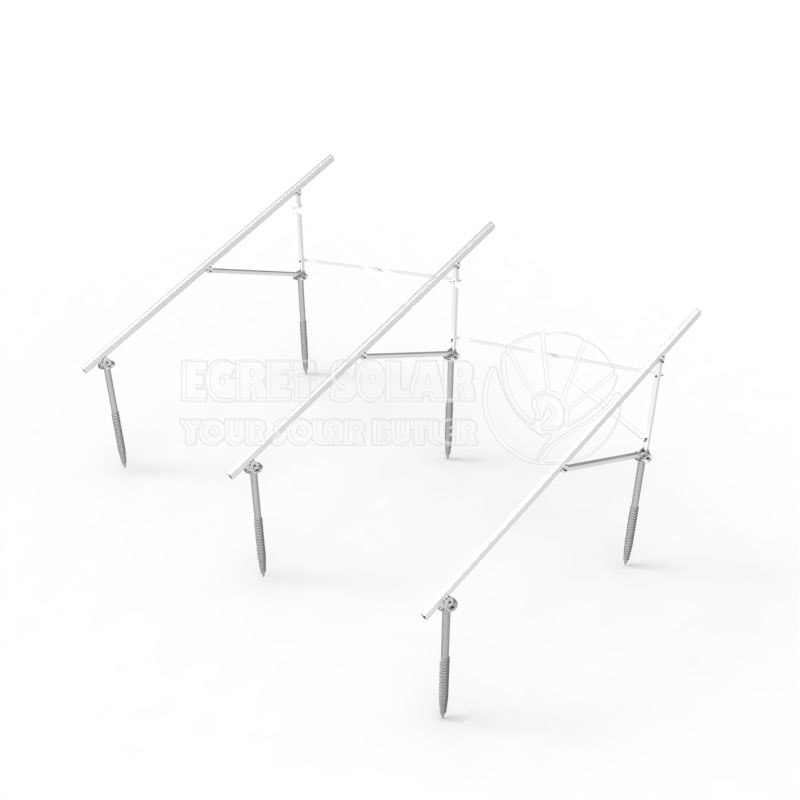

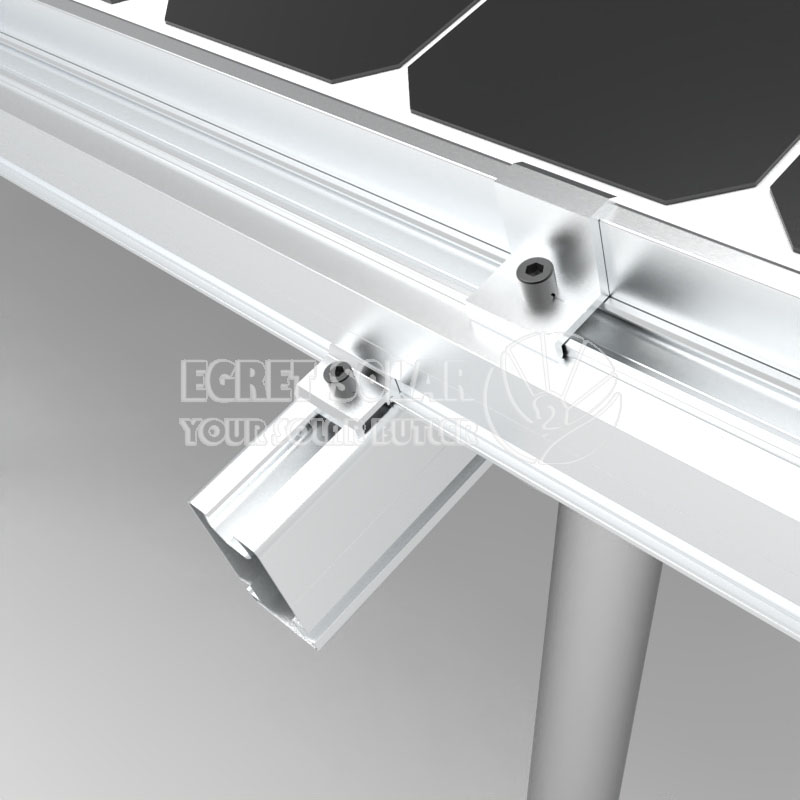

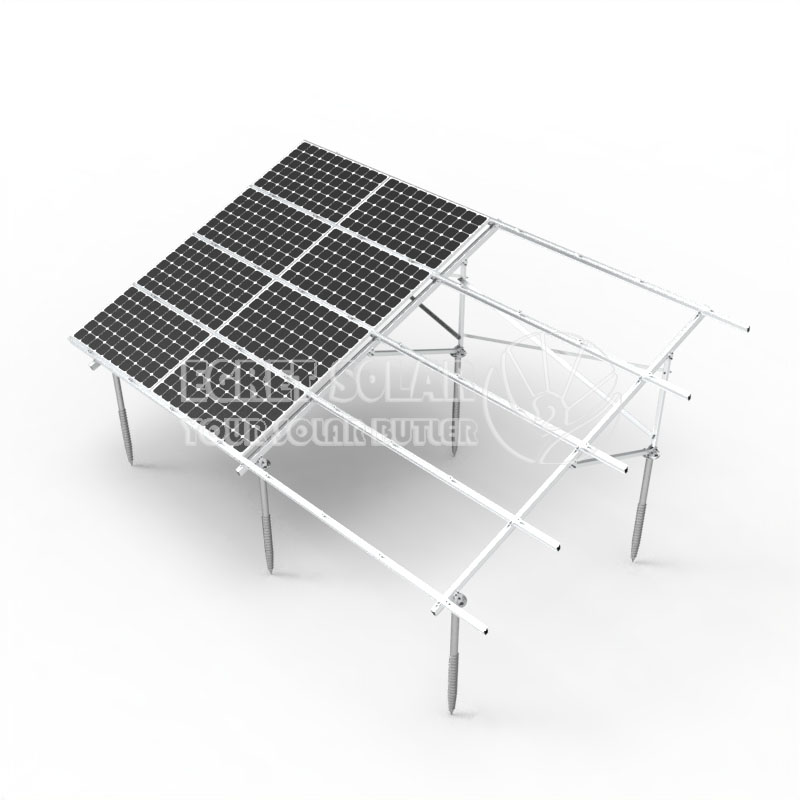

PRODUCT SHOW

A Type Solar Aluminum Ground Mounting Bracket

Advantages

1. Easy installation.

The A type solar aluminum ground mount bracket can be installed with just a hexagonal wrench and a standard tool kit. The pre-assembly and pre-cut process can effectively prevent corrosion, saving your installation time and labor costs.

2. High flexibility.

The A type solar aluminum ground mount bracket solar mounting system is equipped with mounting accessories suitable for almost all roofs and grounds, with excellent compatibility. As a universal bracket system, it is compatible with frame modules from all mainstream manufacturers.

3. High precision.

With our special rail extension technology, the A type solar aluminum ground mount bracket can be installed accurately to the millimeter without on-site cutting.

4. Long service life.

Each component is made of high-quality extruded aluminum, C shaped steel and stainless steel. High corrosion resistance ensures the longest service life and is fully recyclable.
