W Type Solar Aluminum Ground Mounting Bracket

Manufacture W type solar aluminum ground mounting bracket system Ground solar mounting structure Aluminum solar ground mounting system.Our solar ground mounting designs enable substantial spans between two sets of structural legs. This maximizes the utilization of the aluminum ground structure and provides an optimal and cost-effective solution for each project. This versatile approach ensures compatibility with different terrains and offers efficient options for various solar installations.

Payment :T/T,Paypal
Product Origin : China
Color : Black,Silver
Shipping Port :Xiamen
Brand : Egret Solar
Certification :ISO/SGS/CE
Material :AL6005-T5
Panel direction: Horizontal row

Send Inquiry

Product Description

There are now four distinct W type solar aluminum ground mounting bracket types available: concrete based, ground screw, pile, and single pole mounting brackets, which may be mounted on virtually any type of ground and soil.
Large spans between two structure leg groups are permitted by our solar ground mounting designs, which maximize the usage of the aluminum ground structure and produce the best affordable option for each project.

Lead Time:

Quantity (watts)	1-1000000	＞1000000
EST. Time（days）	25	To be negotiated

PRODUCT PARAMETERS

Product name	W type solar aluminum ground mounting bracket system （Horizontal row）
Model Number	EG-GM01-VV-Horizontal
Installation Site	Ground mounting system
Surface Treatment	Aluminum Andized
Wind Load	60m/s
Snow load	1.2KN/M²
Warranty	25 YEARS
Specification	1200mm/1600mm/1800mm/2000mm/2500mm

PRODUCT SHOW

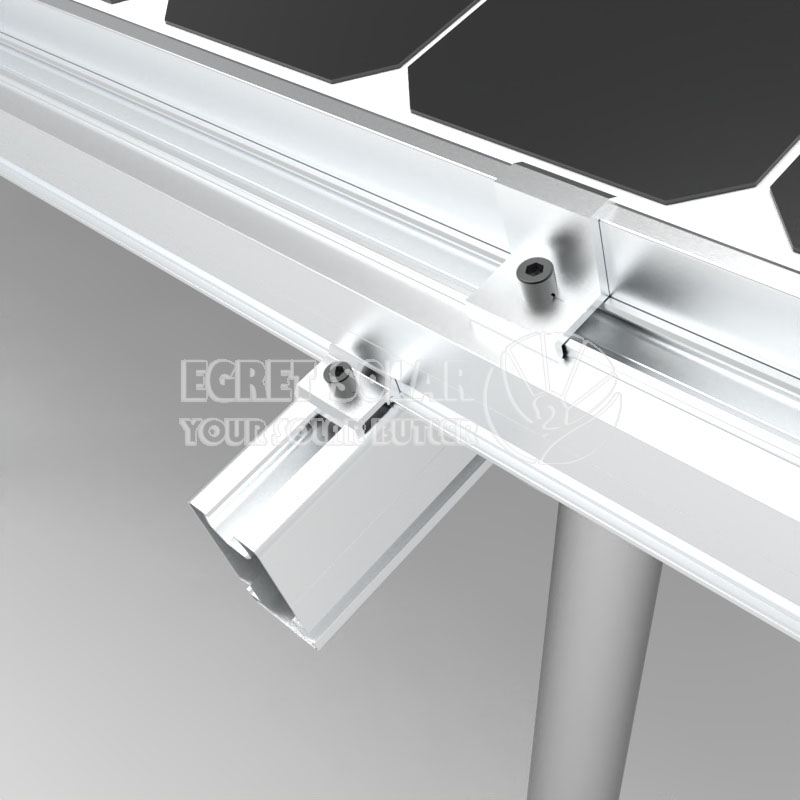

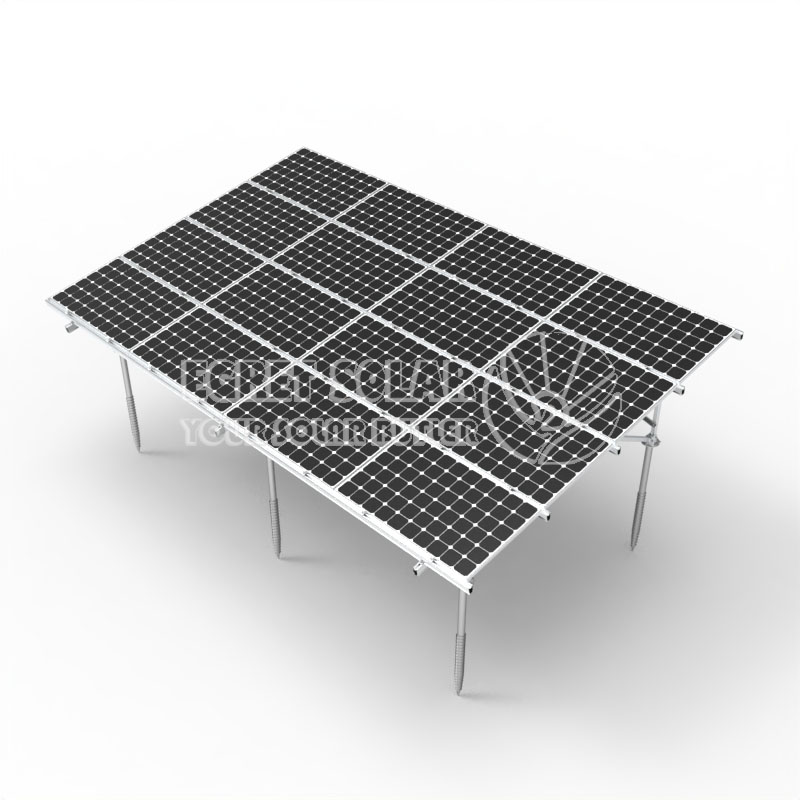

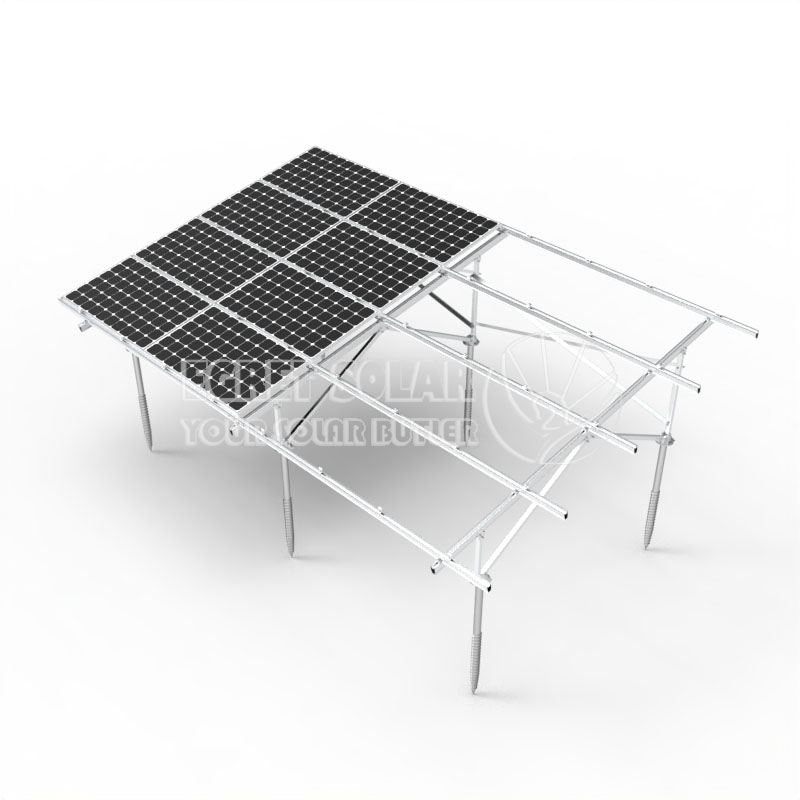

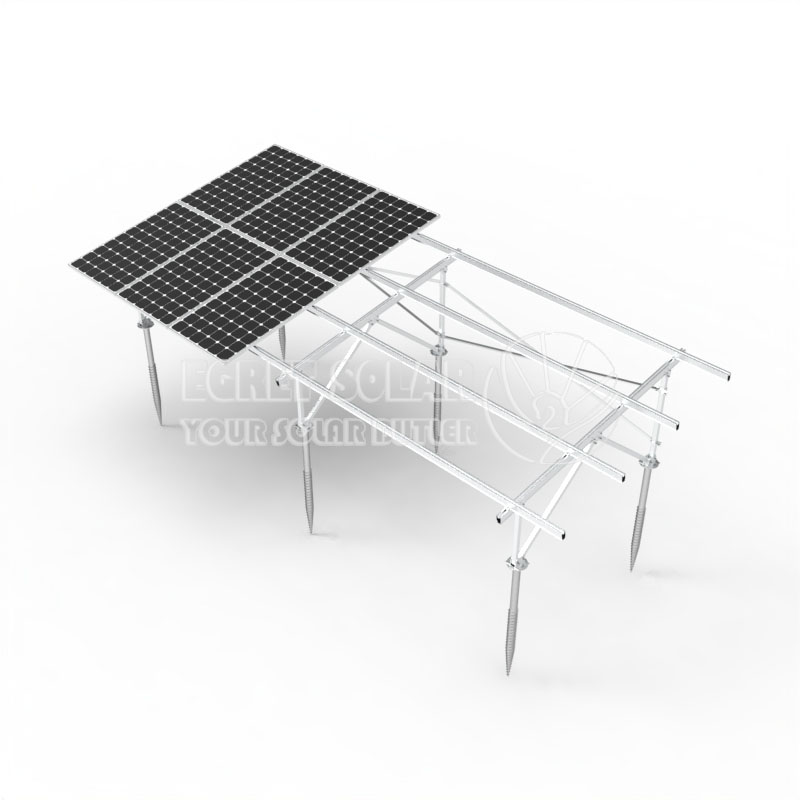

W Type Solar Aluminum Ground Mounting Bracket

Features
1. High Accuracy:
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
2. Maximum Lifespan:
All components are constructed of high-quality aluminum extrusion.The strong corrosion resistance ensures the longest possible lifespan and is 100% recyclable.
3. Guaranteed Durability:
we provides a guarantee of 10 years on the durability of all components used.
