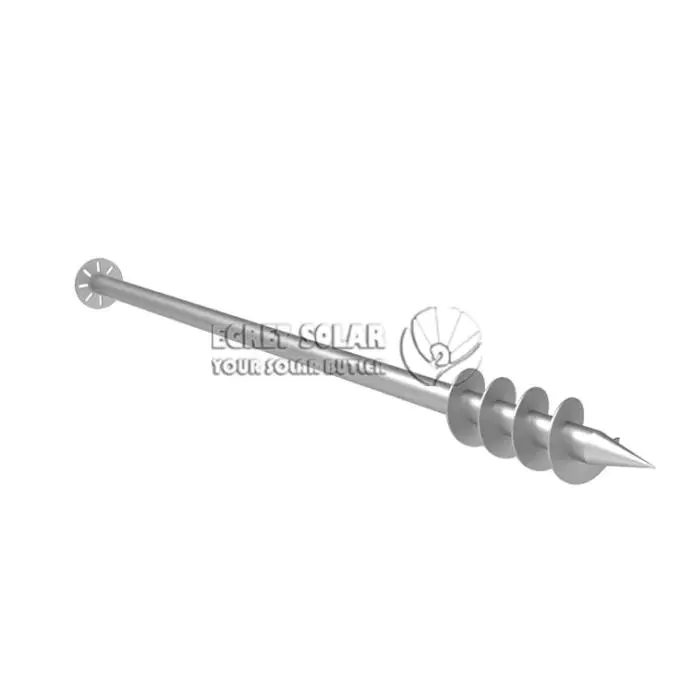

Solar Galvanized Steel Four Blades Ground Screw

Egret Solar Galvanized Steel Four Blades Ground Screw is the new foundation type for PV ground mounting system. The application of this solution is widely. It can minimize the impact on the environment; and it is simple and fast on installation,which saves installation time greatly,save installation costs.

Solar Galvanized Steel Four Blades Ground Screw perform perfect in anti-corrosion & wear-proof and can be freely designed and processed as customized lengths and other requirements.

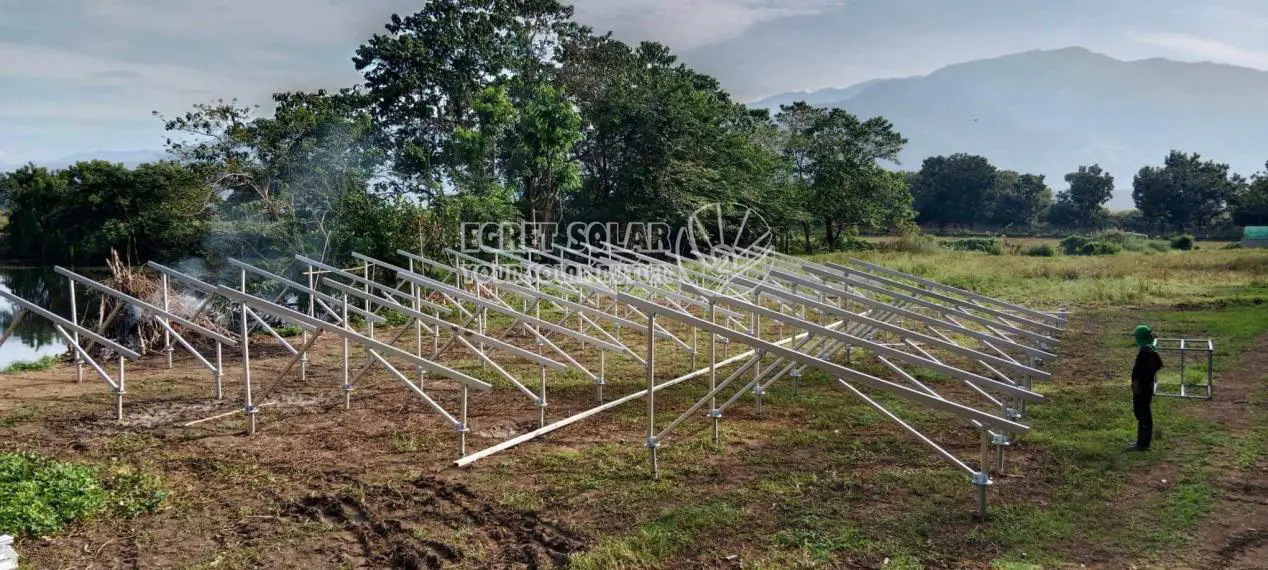

With such four blades ground screws, installations can be realized in desert and sand ground. The four large blades on the ground screw make the contact area between the ground pile and the soil larger, allowing the ground screw to be more firmly fixed on the mellow sand ground.

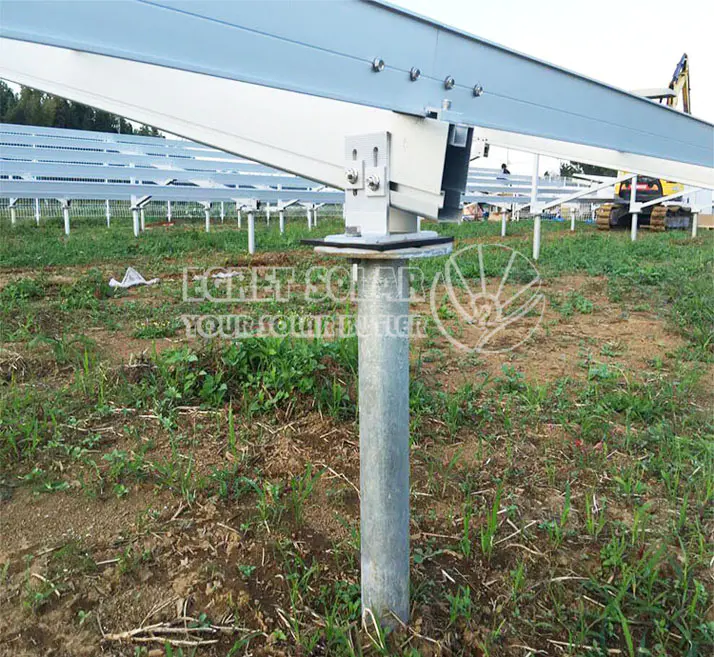

They can be easily installed at the exact points within few minutes. We just need to use ground screw piling machines to drive the ground screws directly into ground, which can largely reduce the project installation time.

PRODUCT PARAMETERS

Advantages of Solar Galvanized Steel Four Blades Ground Screw

1. Resistant to harsh, wet climates without corrosion: 4 mm hot-tempered galvanized steel.

2. Carefully tested for tension, pressure and load.

3. They follow CE regulations and are thoroughly tested with a 12 year warranty.

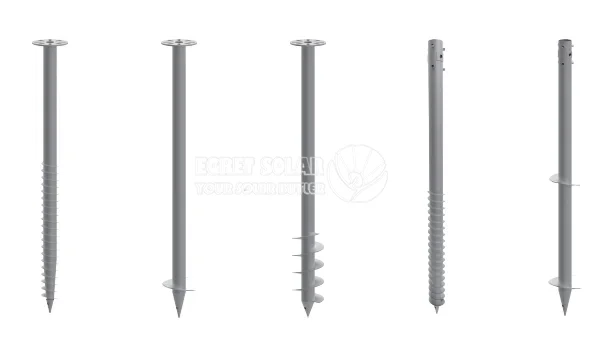

4. We have the ground screw for all terrains, soils and tough surfaces in several models and lengths and a wide variety of attachments.

5. The ground screw does not destroy any surfaces around it and leaves minimal damage if removed.

FAQ:

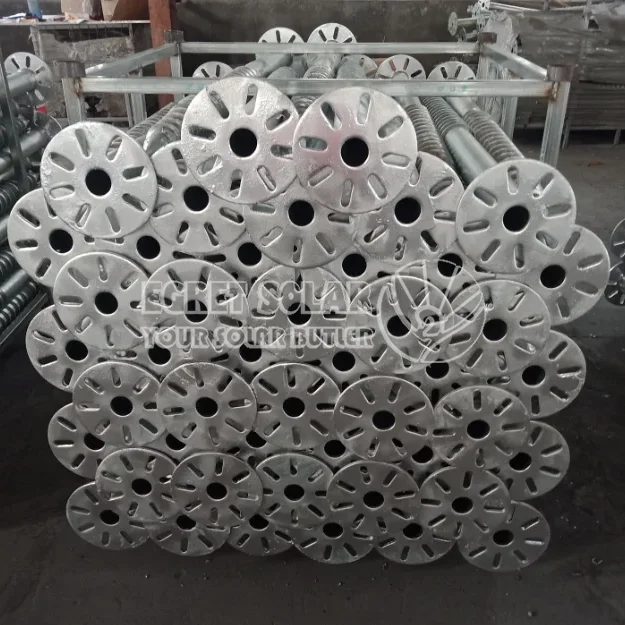

Q: What's the material of the ground screw pile?

A:Hot-Dipped Galvanized Steel Q235(HDG Q235B)

Q: What's the thickness of the galvanized coating?

A:80μm~120μm. Determined by the material thickness

Q: What's the diameter of the screw pile?

A:76mm, 89mm, 114mm are available for options. 76mm is the common use.

Q: What's the thickness of screw pile material？

A:2.5mm~4mm, 3mm is the common use.

Q: What is the total length range of adjustable screw piles？

A:1600mm~1900mm

Q: How to choose the screw pile?

A:Based on soil condition and project load to choose correct thickness and diameter of screw pile.

Q: What is the length of screw pile you can offer?

A:Common use is 1600mm,1800mm,2000mm,we can offer between 1000mm to 3000mm.

Q: What kind of systems can screw pile be used for?

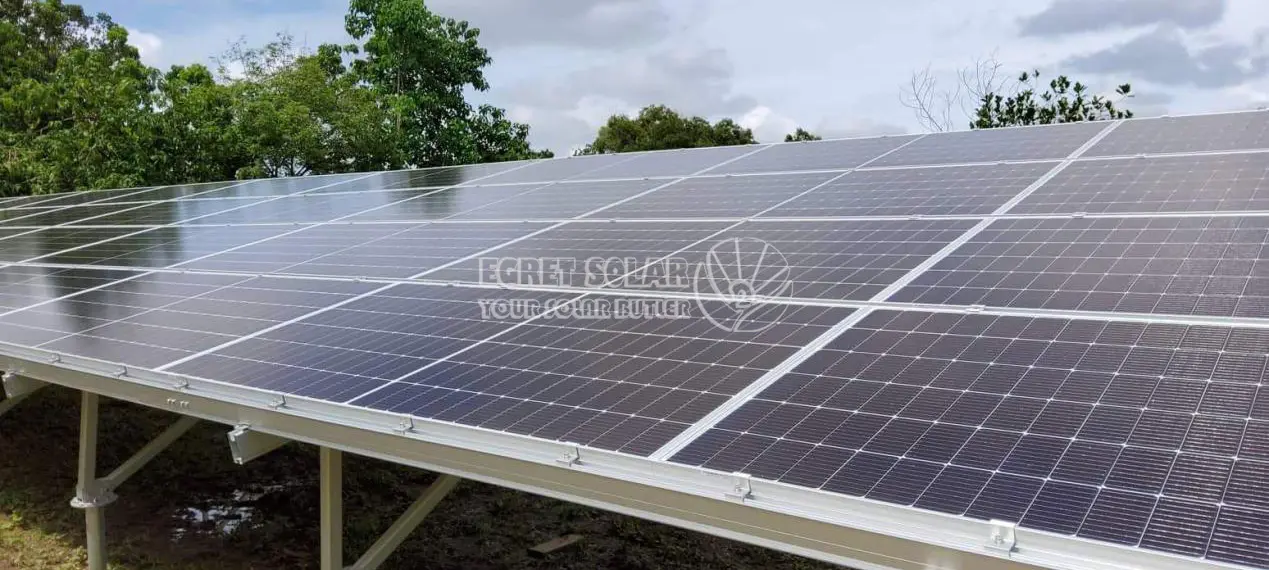

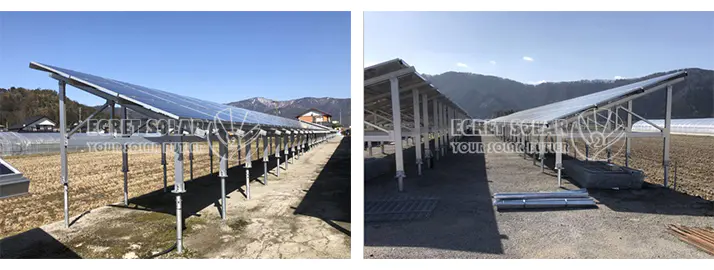

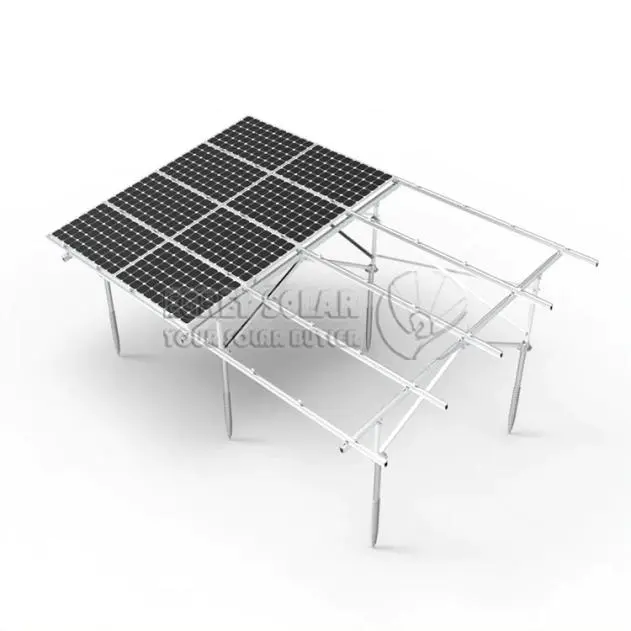

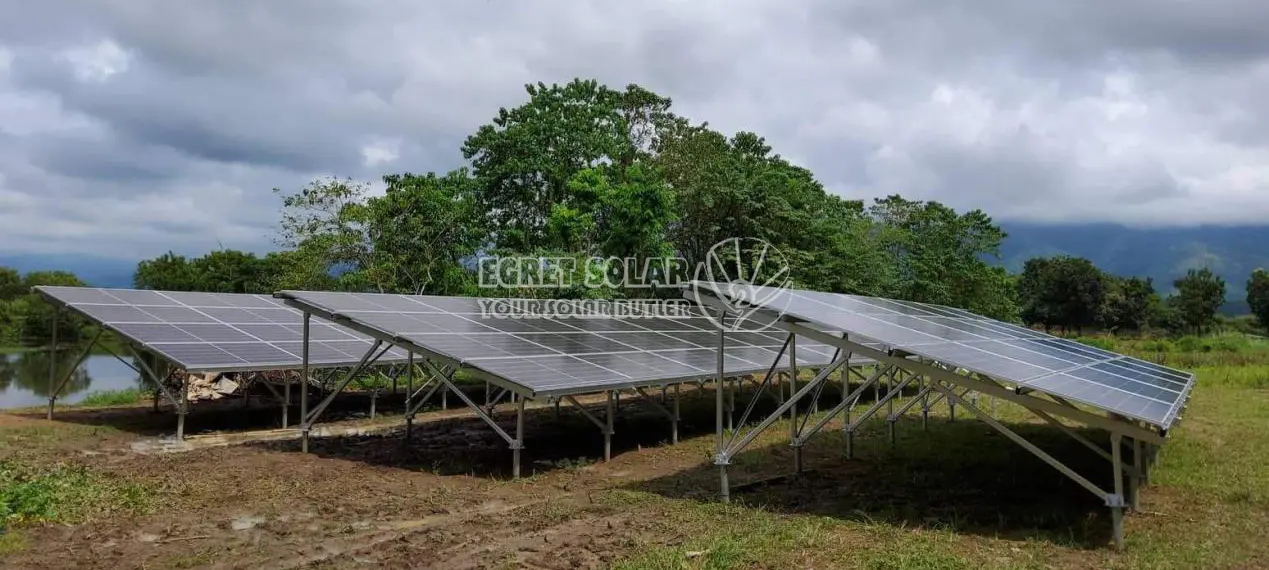

A:It can be used for ground mount systems, solar farm structure systems and carport structure systems.
