Solar Pile Foundation Ground Mounting System

Solar Pile Foundation Ground Mounting System is suitable for the large scale solar pv power plant installation with single steel pile foundation. Combining single steel post with aluminum structure perfectly.

Solar Pile Foundation Ground Mounting System has a good performance in withstanding heavy wind load and snow load, also improving the installation efficiency and saving the cost. With Hot Dip Galvanized surface treatment, single steel pile has a high anti corrosion ability.

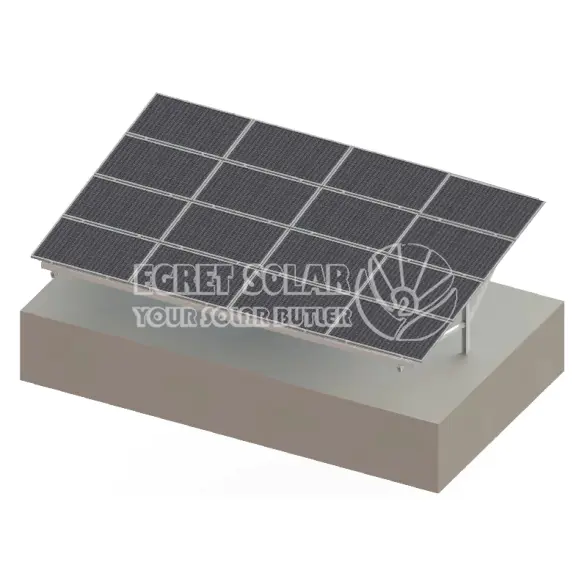

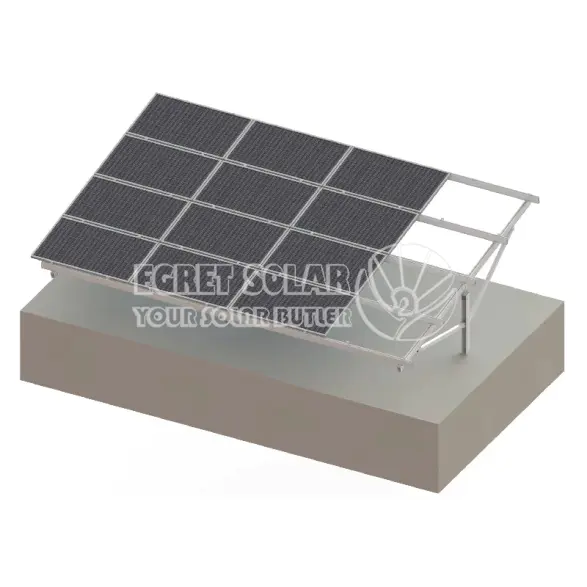

Solar Pile Foundation Ground Mounting System is a solution including steel structure and aluminum rails.it is suitable for both small and large-scale solar plants .with a flexible connection ,it can be installed onto the concrete base ,and also the earth ground ,even the slope can also be workable.

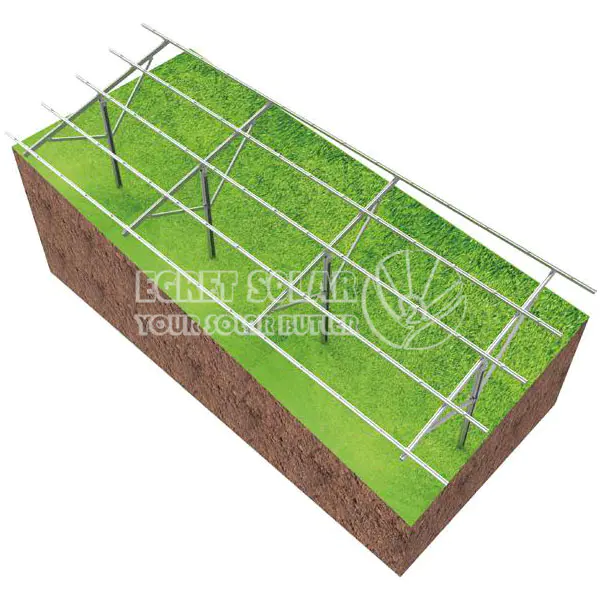

Solar Pile Foundation Ground Mounting System is applied for large solar project panel installation on a non-sandy ground. For Egret Solar pile ground mounting system, the C post can be easily rammed into the ground 1~2 meters by pile machine, then you can mount the pre-assembled beam structure and other mounts easily.

PRODUCT PARAMETERS

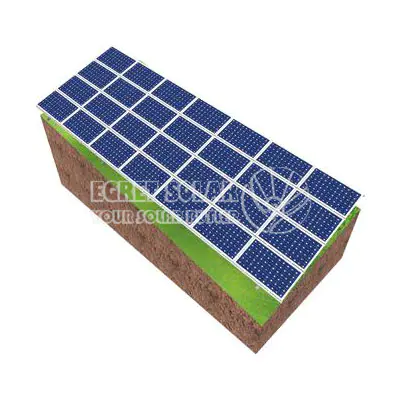

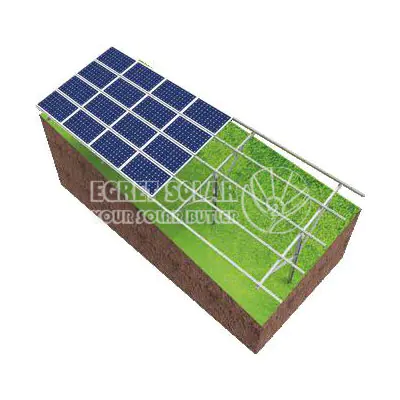

PRODUCT SHOW

OUR ADVANTAGE

Solar Pile Foundation Ground Mounting System’s features:

1. Quick installation with large-scale ground photovoltaic system power station construction progress

2. Flexible form of adjustment to meet the complex requirements of the construction site

3. Refine the number of accessories to facilitate the identification of workers on site

Solar Pile Foundation Ground Mounting System’s features:

4. Quick installation with large-scale ground photovoltaic system power station construction progress

5. Flexible form of adjustment to meet the complex requirements of the construction

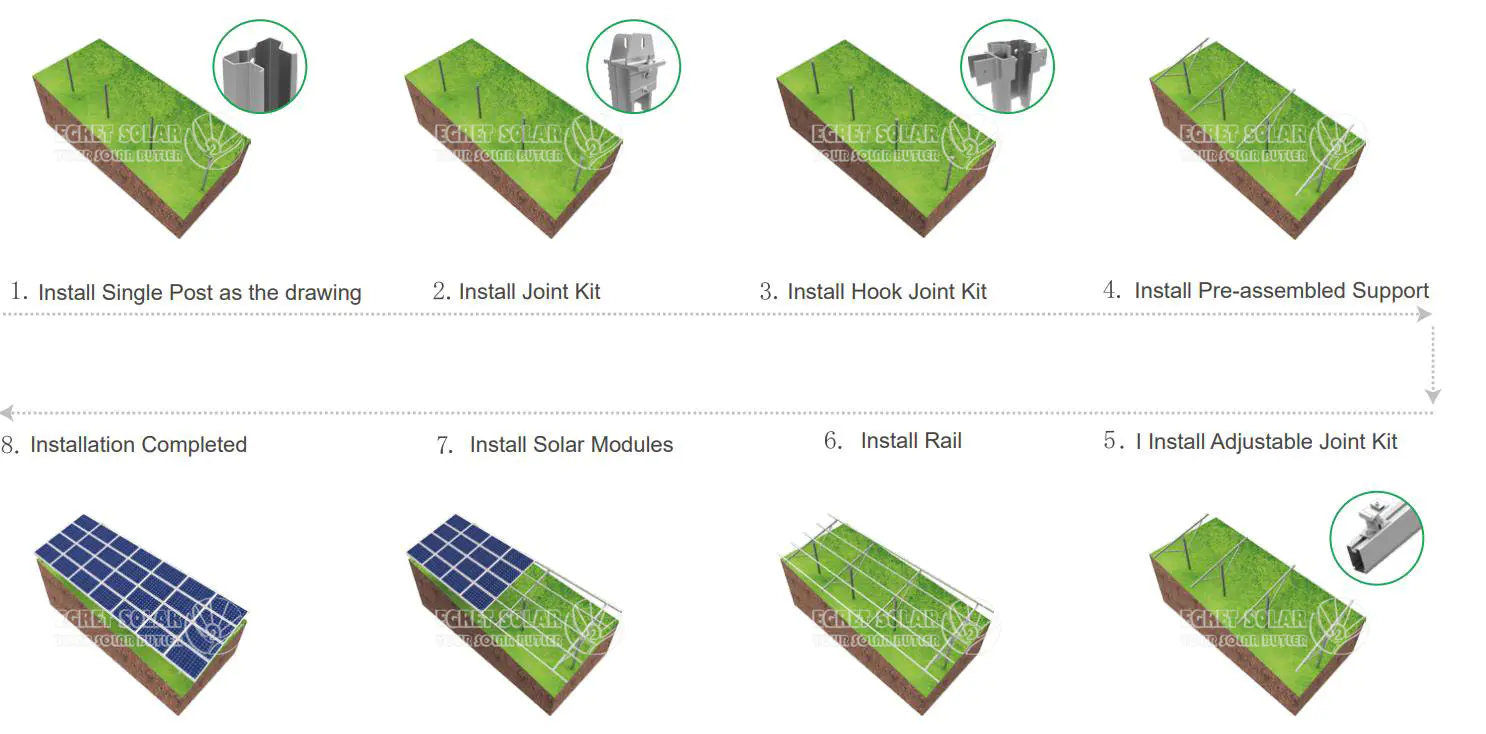

INSTALL ATION GUIDE

FAQ

Q1. What’s your warranty of your solar mounting system?

A:12 years.

Q2. How can I get the quotation if I have solar ground mounting project?

A:Just provide the information below:

1.Panel dimension: length, width and thickness?

2.Tilt angle?

3.Panel layout: how many panels in a column, how many panels in a row? How many solar panels in total?

4.Max wind speed on project site?

5.Max snow load on project site?

6. Ground clearance: the height from the bottom of solar panel to the ground?

7. Foundation: ground screw pile foundation or concrete foundation?

8. Material: Aluminum alloy or galvanized steel?

Q3: Do you customize the Solar Ground Mounting System?

A:Yes, OEM service available.

Q4: What’s the delivery time of the Solar Pile Foundation Ground Mounting System?

A:15-20 days for ground mounting system.
